A jib crane is a versatile lifting solution that makes moving heavy loads easier and more precise. If you’ve ever wondered how cranes reach tight spots or lift over obstacles, understanding the jib is key. From fixed jibs to articulating and fly jibs, each type offers unique benefits for different applications. Whether you’re managing a busy warehouse, assembly line, or construction site, knowing how to choose the right jib crane can improve efficiency, safety, and workflow. Novocrane (Suzhou) Co., Ltd. offers tailored solutions for every lifting need.
A crane jib is the horizontal or slightly angled arm extending from a crane’s mast or boom. It acts like an arm, giving the crane extra reach beyond its base. Some people confuse the jib and the boom. The boom is often the main lifting arm, while the jib can be an extension of it. In simpler terms, the jib provides flexibility, letting the crane reach areas that the base or main boom cannot.
It supports the hoist and trolley. This lets operators move loads precisely and safely. Depending on design, a jib can rotate, pivot, or stay fixed. Its length, angle, and strength directly affect how far and high the crane can lift.
The jib serves multiple roles in a crane system:
Extends the crane’s reach: It lets you lift materials farther than the base alone.
Enables precise load positioning: Operators can move items exactly where they need to go.
Lifts over obstacles: Perfect for construction sites, warehouses, or areas with tight spaces.
Boosts operational efficiency: Less repositioning of the crane is needed.
| Function | Benefit |
|---|---|
| Extended Reach | Access distant or hard-to-reach areas |
| Load Accuracy | Precise placement of heavy materials |
| Obstacle Navigation | Works around walls, machinery, or storage racks |
| Efficiency | Reduces time and effort during lifts |
The jib connects directly to the crane’s mast, boom, or tower. It usually carries a hoist and a trolley. The trolley moves along the jib, letting operators adjust the load horizontally. Some jibs are articulated, meaning they can bend or pivot at certain points. Others can rotate a full 360°, depending on the crane type. This rotation, combined with the hoist and trolley motion, gives excellent maneuverability.
Connection: Bolted or welded to mast/boom.
Movement: Horizontal along the jib via trolley.
Rotation: Either partial (180°–200°) or full circle (360°).
Articulation: Two-section jibs can reach around corners or obstacles.
Visualizing it helps: imagine the jib as a lever arm. The hoist travels along it, swinging in an arc if the jib rotates. Operators control the motion using hand, electric, or pneumatic systems.

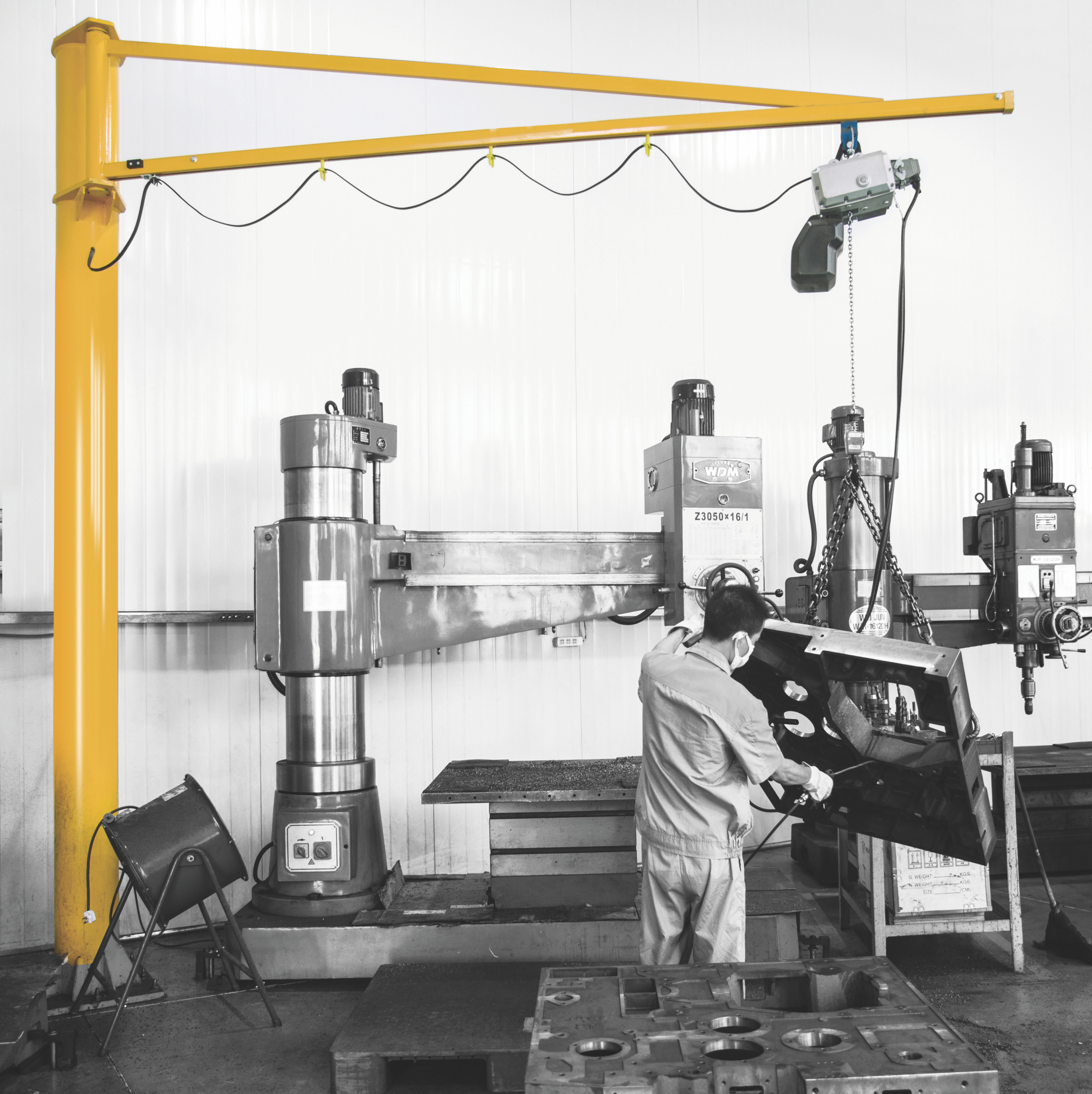

A fixed jib is stationary. It doesn’t move or pivot, keeping the crane simple and easy to operate.
Characteristics: Simple design, no articulation, low maintenance
Ideal Applications: Warehouses, workshops, areas without overhead obstructions
Luffing jibs can raise or lower the jib angle. This makes them perfect for environments with height restrictions or obstacles.
Ability: Adjust angle to lift loads over walls, machinery, or other barriers
Advantages: Efficient in tight spaces, avoids repositioning crane, improves safety
Tip: They are widely used on construction sites where vertical clearance varies frequently.
Fly jibs are extra arms that attach to the main jib to extend reach. They are often modular and can be removed if not needed.
Extendable Secondary Jib: Adds extra reach without changing crane base
Use Cases: Shipyards, ports, construction projects requiring long-distance lifts
Articulating jibs use two or more swivel arms. They rotate independently for precise load placement.
Rotation & Reach: Inner arm may swivel 180°; outer arm up to 360°
Precision: Perfect for maneuvering around corners, columns, or machinery
Applications: Tight spaces, assembly lines, container terminals
| Jib Type | Movement | Reach | Best Use Case |
|---|---|---|---|
| Fixed | Stationary | Moderate | Simple warehouses, workshops |
| Luffing | Raises/lowers | Moderate | Construction with vertical obstacles |
| Fly | Extendable | Long | Shipyards, container handling |
| Articulating | Multi-arm swivel | Flexible | Tight workspaces, assembly lines |
Selecting the perfect jib crane isn’t always simple. You need to consider multiple factors to match your lifting needs and workspace. Here’s a practical guide.
Lifting Capacity and Span Requirements
Determine the maximum load the crane must lift. Also, measure the working span needed for the task. The jib’s length and strength must match the heaviest and farthest lift.
Rotation Range and Type of Jib
Choose between fixed, luffing, fly, or articulating jibs. Consider how much rotation is required. Fixed jibs stay stationary, while articulating jibs can maneuver around obstacles.
Mounting Options
Decide if the jib should be freestanding, wall-mounted, or ceiling-mounted. Freestanding works for open spaces. Wall or ceiling mounts save floor space and improve workflow in tight areas.
Duty Cycle and Frequency of Use
Consider how often the crane will operate daily. High-duty applications need durable components. Light or occasional use allows simpler, cost-effective solutions.
Indoor vs. Outdoor Application
For outdoor use, corrosion resistance, weatherproof controls, and strong foundations are important. Indoor cranes can be lighter and simpler.
Power Source and Controls
Manual jibs suit light lifting. Electric hoists speed up repetitive tasks. Pneumatic systems are ideal in environments where sparks or electricity hazards exist.
| Factor | Question to Ask | Example |
|---|---|---|
| Capacity | How much weight must it lift? | 2 tons |
| Span | How far must the jib reach? | 25 ft |
| Rotation | Full or partial rotation? | 360° or 180° |
| Mounting | Floor, wall, or ceiling? | Wall-mounted for tight spaces |
| Duty Cycle | Frequent or occasional use? | 8-hour daily operations |
| Environment | Indoor or outdoor? | Outdoor with galvanized steel |
| Power | Manual, electric, or pneumatic? | Electric motor with variable speed |
Always measure the working area and clearances before buying.
Check manufacturer recommendations for load and rotation limits.
Consider future expansion or additional cranes when planning layout.
Safety features like overload protection and rotation stops should be non-negotiable.
A: A jib is the horizontal or angled arm extending from the crane, often an extension of the boom. The boom is the main lifting arm, while the jib provides extra reach and flexibility.
A: Jib lifting capacity varies by crane type, typically from 250 lbs to 15 tons, depending on design, length, and support structure.
A: Yes, some freestanding or foundationless jib cranes can be relocated, while wall or ceiling-mounted cranes are mostly fixed.
A: A luffing jib can raise or lower its angle for obstacle clearance. A fixed jib remains stationary with no vertical adjustment.
A: Articulating jibs use swivel arms to maneuver around obstacles, allowing precise load placement and reducing crane repositioning in confined areas.
Exploring the world of jib cranes reveals just how much a simple arm can boost productivity. From extending reach to navigating tight spaces, the jib makes lifting tasks smarter and safer. For businesses looking to upgrade operations, Novocrane (Suzhou) Co., Ltd. provides customizable jib crane systems designed to fit any workspace, duty cycle, or lifting requirement.
