Wall Mounted Compact Jib Crane

Product Specifications

Key Features & Benefits

Space-Saving Installation

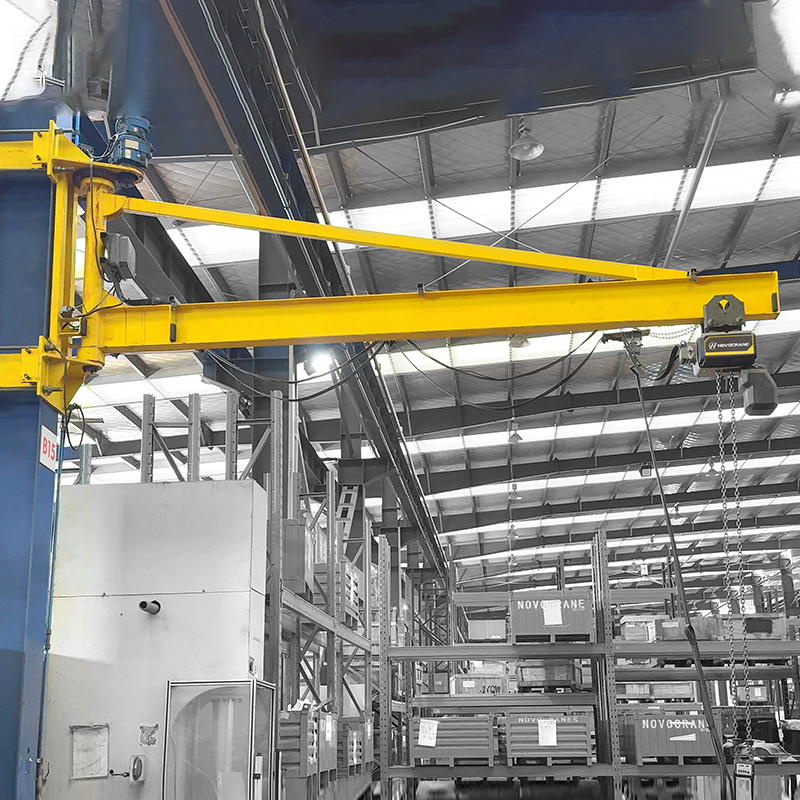

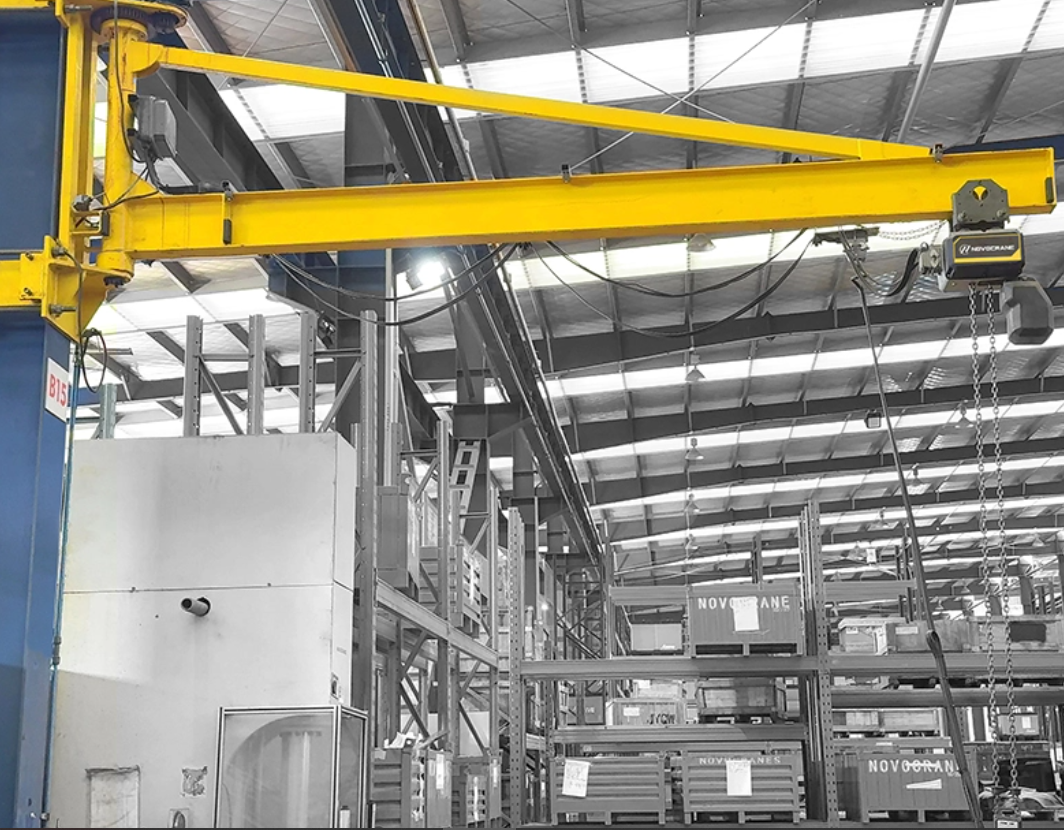

Unlike floor-mounted cranes, the Wall-Mounted Compact Jib Crane attaches directly to existing structures (walls/columns), freeing up valuable floor space. This makes it perfect for space-constrained workshops where maximizing operational area is critical.

Flexible Operation & Wide Coverage

The cantilever rotation (up to 180°) and mobile Electric Hoist enable precise, agile movement of loads across the crane’s radius. Operators can easily transfer materials between adjacent workstations, supporting multi-station collaboration in busy production lines.

Customizable Payload Capacity

With a Payload Capacity range of 0.1T to 5T (customizable per requirements), the crane accommodates light-to-medium loads—from small components to packaged goods—suiting diverse industrial material handling needs.

Sturdy & Durable Construction

Built with high-strength carbon steel, the crane’s frame and cantilever resist deformation and wear even under frequent use. This robust design ensures long-term stability and reduces maintenance costs over its service life.

Cost-Effective Solution

Compared to large overhead cranes, this compact jib crane requires lower initial investment and simpler installation. Its low operational and maintenance costs make it a budget-friendly choice for small-to-medium enterprises (SMEs).

Application Scenarios

Mechanical Processing Workshops

In machining environments (e.g., beside lathes or milling machines), the Wall-Mounted Compact Jib Crane handles tooling, workpieces, and spare parts. Speeding up material transfer between stations and reducing manual labor intensity.

Automotive Assembly Lines

During vehicle assembly, the crane lifts and positions automotive components (e.g., door panels, engine parts) at different workstations. Improving assembly efficiency and minimizing ergonomic strain on workers.

Logistics & Warehousing Facilities

In warehouses or storage areas, it supports loading/unloading of cartons, small pallets, and inventory items. Optimizing goods handling in limited storage spaces.

Small-Scale Manufacturing Units

For compact production facilities (e.g., hardware fabrication, electronic component assembly). The crane provides localized, efficient material handling to keep production workflows smooth.

Installation & Maintenance Tips

Installation Guidelines

Structural Load Check: Ensure the target wall or vertical column can bear the crane’s weight plus maximum load before installation.

Precise Alignment: Calibrate the cantilever to be horizontally level to avoid uneven load distribution during operation.

Secure Hoist Mounting: Fix the Electric Hoist firmly on the cantilever and test its lifting/lowering functions post-installation.

Maintenance Recommendations

Regular Inspection: Weekly check for loose bolts (on the cantilever/column connection) and wear on the hoist chain; replace damaged parts promptly.

Lubrication: Monthly lubricate the cantilever’s rotation joint and hoist gears to ensure smooth movement.

Electrical Checks: Quarterly inspect power cables and control switches of the Electric Hoist to prevent electrical malfunctions.
