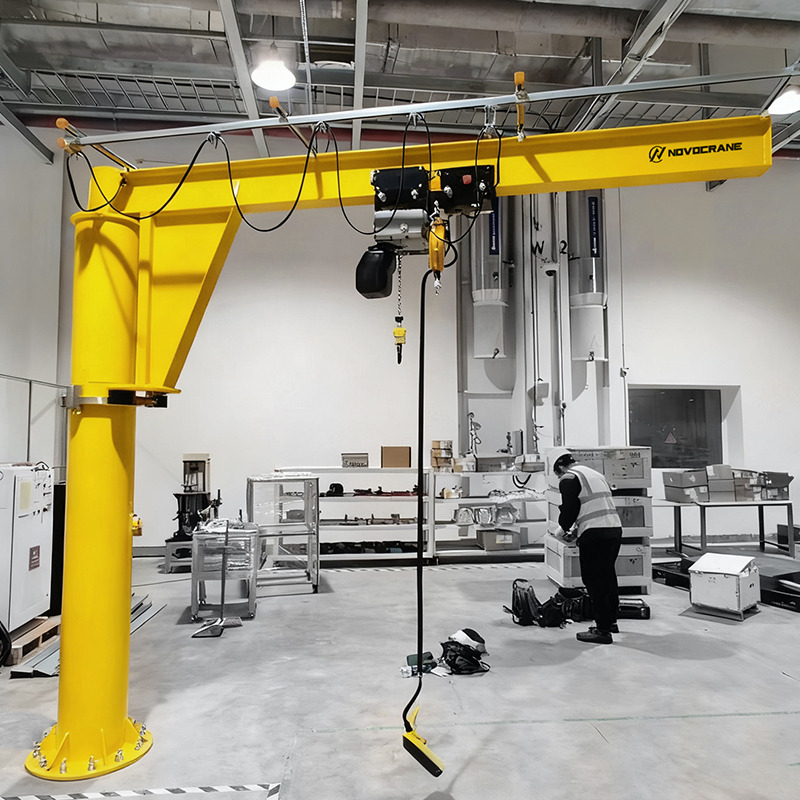

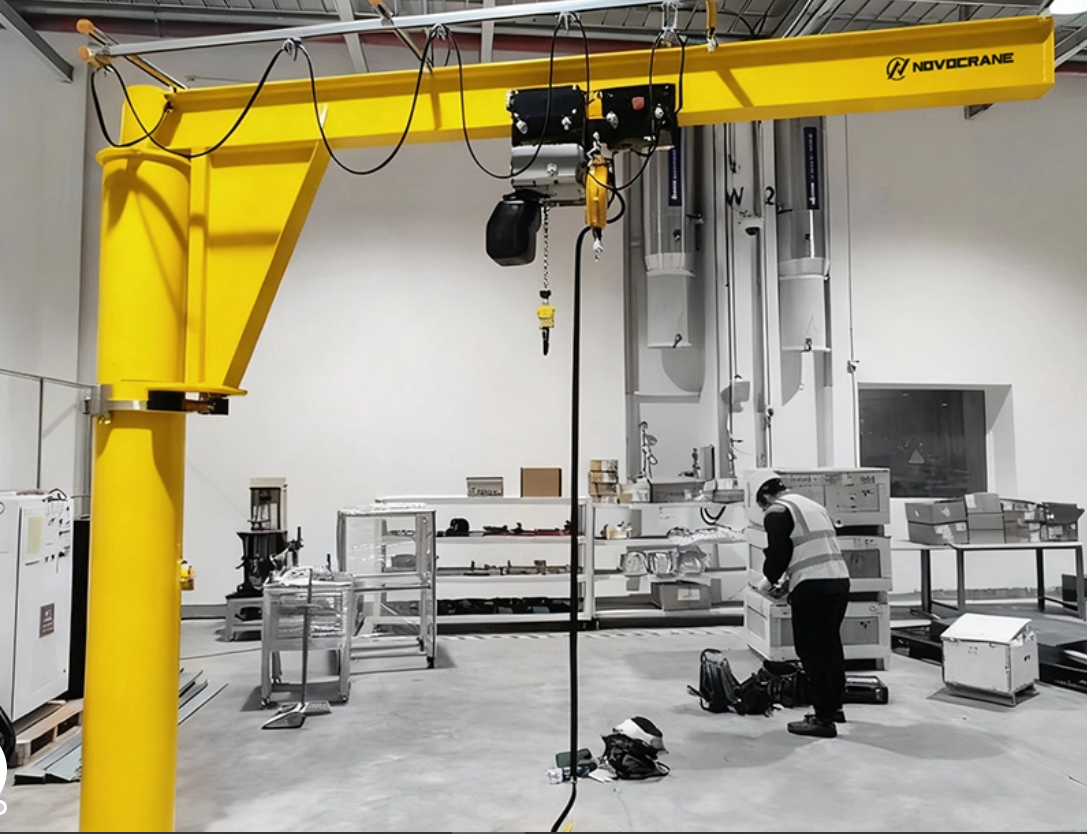

Floor Mounted Heavy Duty Jib Crane

Product Specifications

Below are the key parameters of the NOVODRANE floor-mounted jib crane series:

Key Features & Benefits

360-Degree Rotating Jib Coverage

The floor-mounted jib crane’s full 360-degree rotating jib eliminates material-handling blind spots, covering a broad operational area with one unit. This flexibility reduces reliance on multiple tools, streamlining workflows in compact workshops.

Efficient Electric-Driven Operation

Equipped with a high-performance electric-driven system, this NOVODRANE jib crane lets one operator complete tasks that typically require multiple workers. Its smooth lifting action cuts manual labor time, boosting high-frequency task efficiency by up to 40%.

Cost-Effective Performance

This column jib crane offers dual cost advantages: its low procurement & operational cost suits SME budgets, while its 60% lower energy consumption (vs. traditional equipment) reduces long-term utility expenses. Durable steel construction also minimizes repair/replacement costs.

Enhanced Safety Protection

Built-in overload protection shuts down operation when weight limits are exceeded, protecting the crane and loads. Limit position protection stops the electric hoist from moving beyond safe ranges, isolating risks and meeting workplace safety standards.

Compact & Space-Saving Structure

The floor-mounted design (no overhead rail needed) and streamlined frame save valuable floor/vertical space. It installs in tight workshop corners alongside existing equipment without disrupting daily operations.

Application Scenarios

Mechanical Manufacturing Workshops

In mechanical manufacturing settings, the NOVODRANE floor-mounted jib crane lifts and repositions metal components, machine parts, and assembly modules. Streamlining production line workflows.

Automotive Assembly Lines & Logistics Warehousing Facilities

Within automotive assembly facilities, this crane handles small-to-medium auto parts (e.g., engine components, body panels) with precision, reducing manual fatigue and speeding up assembly cycles.

In logistics warehousing environments, it streamlines loading, unloading, and stacking of packaged goods/palletized items, improving inventory handling in limited storage spaces.

SME Premises

For SMEs across industries, this column jib crane acts as a budget-friendly, versatile lifting solution. Boosting productivity without large capital investments.

Installation & Maintenance Tips

Installation Guidelines

Ensure the site has a flat, load-bearing concrete floor (≥150mm thickness) to support the floor-mounted jib crane’s weight and operational forces. Hire certified technicians to assemble the unit, focusing on secure column connection and jib arm alignment for smooth rotation. Test overload protection and other safety devices post-installation before operational use.

Maintenance Recommendations

Inspect the electric hoist, cables, and jib arm joints weekly for wear, loose connections, or damage. Lubricate the jib rotation mechanism and electric hoist components monthly to preserve smooth operation. Test limit position protection quarterly to maintain safety compliance.
