These cranes enable fast, precise, and safe point-to-point handling in workstations, assembly cells, and loading bays. The design is lightweight and offers low headroom. Paired with an electric hoist, it increases throughput, reduces operator fatigue, and frees floor space. Tailored outreach, slewing range, and mounting options support reliable lifting across manufacturing, logistics, and maintenance tasks.
Choose a configuration that fits layout, coverage, and duty.

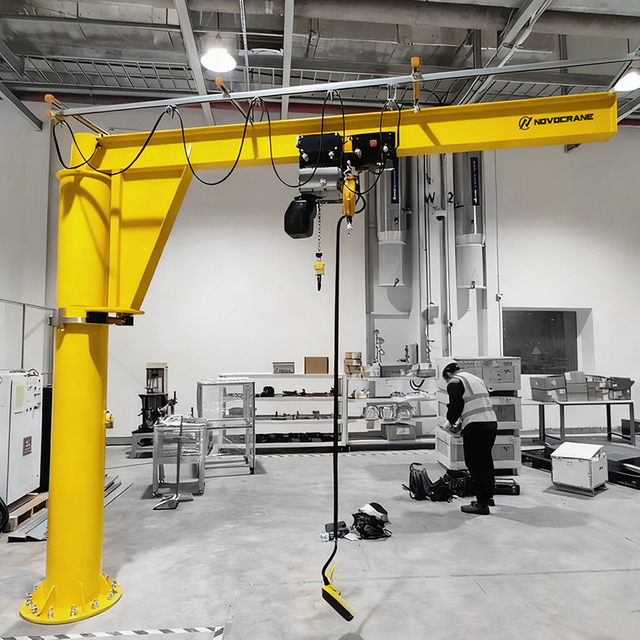

✅360° coverage for island stations or where building support is limited
✅Capacity: ~0.25–10 t (higher on request); Outreach: 2–10 m
✅Manual or motorized rotation; base plate or sleeve mounting

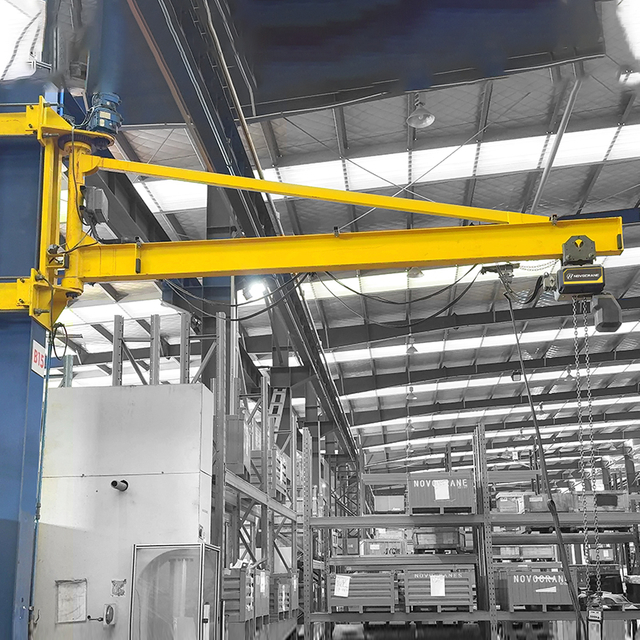

✅180–200° slewing along production lines, mezzanines, and docks
✅Capacity: ~0.125–5 t; Outreach: 2–8 m (structure dependent)
✅Bracket or tie-rod support to reduce deflection

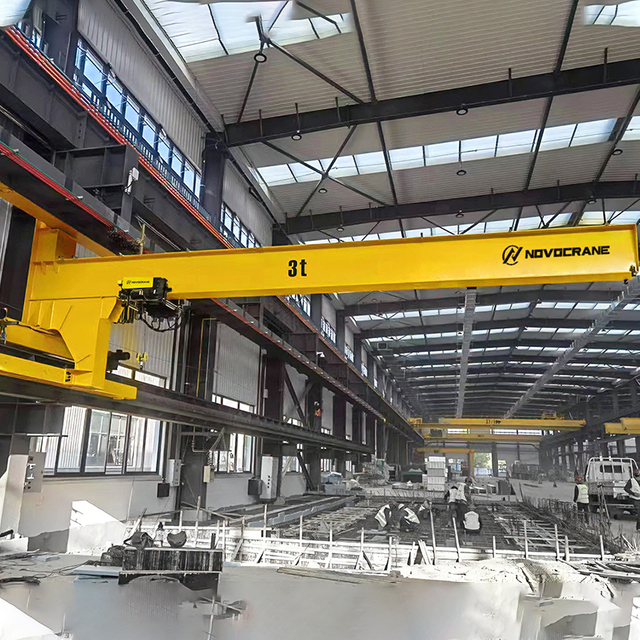

✅A slewing boom that moves along a runway to serve multiple stations
✅Capacity: ~0.25–2 t; Travel matched to bay length
✅Power via festoon or conductor systems
✅Inner/outer arms bypass columns, machinery, and doorways
✅Capacity: ~0.125–1 t; configurable arm lengths
✅Independent arm slewing for precise placement
Compact, low headroom packages for light to medium duty with smooth, variable-speed handling and easy maintenance.
For higher capacities or faster cycles, a robust solution with precise positioning and reduced cycle times.
Type-tested units with sealed components and anti-spark measures for classified zones when required.
✅Capacities: 0.125–10 t (custom options available)
✅Outreach: 2–10 m with optimized hook approach
✅Slewing: 180–360°; manual push, geared, or motorized
✅Motion and control: single/dual speed or VFD; pendant or radio; soft start/stop
✅Power: 380–480 V, 50/60 Hz; IP-rated enclosures
✅Materials and finish: high-strength steel booms; primer + topcoat; optional hot-dip galvanizing or marine paint; bearings and slew drives sized for duty and environment
Foundation drawings and anchor layouts reflect load cases, concrete grade, and edge distances for long-term performance.
Brackets and tie-rod configurations are verified for flange thickness, edge distances, and allowable loads to avoid overstress.
Functional testing, load trials, operator guidance, and documentation support smooth operation from day one.
Overload protection, limit switches, emergency stop, thermal protection, and mechanical stoppers help protect people and equipment.
Systems align with relevant FEM/ISO duty classes; hazardous-area options are type tested. Component certificates support traceability.
Accessible components, common spare parts, and preventive maintenance plans help reduce downtime and extend service life.
✅Equipment manufacturing and assembly: precision positioning, tool handling, sub-assembly transfer
✅Automotive, transportation, logistics: line-side loading, picking, kitting with clear aisles
✅Energy, metallurgy, shipbuilding, paper, construction machinery: heat-resistant finishes, corrosion protection, reliable rotation under load
✅Load, reach, headroom: define rated load, typical load, outreach, hook heights, and obstructions
✅Duty cycle and environment: match duty class, temperature, dust, humidity, corrosion, or hazardous-area needs
✅Installation and budget: confirm building support, foundation options, power, and options that improve throughput and lifecycle value
Also known as swing jib, slewing jib, pillar-mounted unit, wall-mounted model, wall-traveling jib, articulating arm crane, or workstation crane.
Our range integrates with light crane and overhead solutions to cover workflows from workstation to bay. Designs draw on German engineering practices with strict quality management and partnerships with established component suppliers. Contact Jib Crane manufacturer to discuss your project or request a quote.
