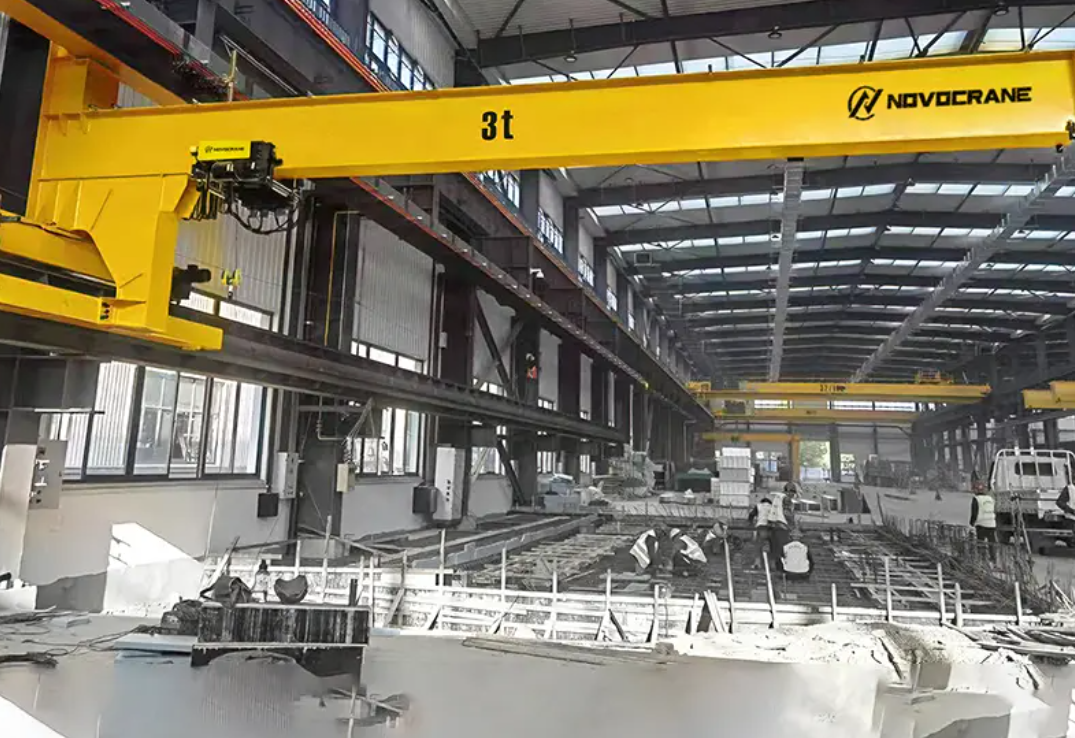

Wall Travelling Light Duty Jib Crane

Product Specifications

Key Features & Benefits

Space Optimization Advantage

The track system of this Wall-Travelling Light Duty Jib Crane adopts overhead mounting (wall/column-fixed), which fully releases ground space—eliminating interference with floor-based equipment or workflows. This design is particularly tailored for narrow or long-strip workshop layouts, where traditional material handlers would struggle to operate efficiently.

Flexible Operation Performance

Equipped with a high-precision drive mechanism, the cantilever arm supports long-distance horizontal movement (covering the entire length of wall-mounted tracks, e.g., full wall span). Its 180°–360° rotation function enables multi-angle positioning of loads, ensuring seamless access to hard-to-reach workstations or storage spots.

Safety & Reliability

To minimize operational risks, this light duty jib crane is integrated with essential safety components: a overload protection device (automatically cuts power when exceeding rated load) and limit switches (prevents over-travel of the arm or lifting mechanism). These features safeguard both operators and on-site assets.

Cost-Effective Design

The lightweight structure of the crane reduces initial purchase costs compared to heavy-duty alternatives. Its modular design simplifies daily upkeep and part replacement—lowering long-term maintenance expenses while boosting overall operational efficiency, thus cutting unit handling costs significantly.

Application Scenarios

Industrial Production Fields

This Wall-Travelling Light Duty Jib Crane is widely used in mechanical processing workshops for lifting and transferring metal components, and in automotive assembly lines for moving heavy parts (e.g., chassis frames or engine assemblies) between stations. Its 3D operation capability aligns with the high-precision needs of manufacturing workflows.

Logistics Warehousing Links

In long-strip warehouse environments, it facilitates efficient loading/unloading of goods; for high-rise racking systems, it enables safe access to goods stored at elevated positions—addressing the space constraints of compact storage facilities.

Cross-Station Collaboration Scenarios

When deployed in groups, multiple cranes can collaborate to cover large-scale work areas, supporting coordinated operations across multiple production or storage stations (e.g., linking processing, inspection, and packaging workstations).

Installation & Maintenance Tips

Installation Precautions

Ensure professional positioning of the track system: Verify that the wall/column bearing structure meets load requirements, and align the track horizontally to avoid movement jams.

Conduct load testing after installation: Confirm that lifting, travel, and rotation functions operate smoothly under rated load before formal use.

Maintenance Suggestions

Regularly inspect the cantilever arm and track system: Check for structural wear or loose fasteners monthly to prevent safety hazards.

Lubricate moving components (e.g., drive gears, lifting chains) quarterly: This extends the service life of the crane and maintains operational smoothness.
