A jib crane is one of the most practical lifting solutions for workshops and production floors. But how do you choose the right portable jib crane for your workspace? The answer depends on several factors, including load capacity, boom reach, mobility, and hoist type. In this guide, we’ll walk through how to choose a portable jib crane step by step. You’ll also compare portable jib cranes with other material handling cranes and learn how to select a system that fits your workflow and lifting needs.
Choosing a portable jib crane involves more than picking a lifting capacity. We usually look at the workspace, load characteristics, and movement needs. Each factor influences safety, workflow, and long-term reliability. When we match the crane correctly, lifting becomes smoother and operators work more efficiently.
Load capacity defines the maximum weight the crane can safely lift. Start by identifying the heaviest load handled during daily operations. Remember to include extra weight from lifting tools, hooks, and the hoist itself. Engineers rarely select a crane rated exactly at the load limit. They normally choose a model offering higher capacity. This additional margin protects equipment and reduces stress on mechanical components.
Several reasons explain this practice:
It protects the structural frame of the crane
It reduces long-term mechanical wear
It improves operational safety
It allows room for future production changes
| Typical Load | Recommended Crane Capacity |
|---|---|
| 300 kg | 500 kg crane |
| 800 kg | 1 ton crane |
| 1.5 ton | 2 ton crane |
Most portable jib cranes operate in light to medium lifting ranges, making them suitable for workshops, maintenance areas, and assembly lines.
Boom length determines the horizontal reach of the crane. It defines the working radius and influences how much floor area the crane can serve. Longer booms extend the lifting coverage across a wider space. Shorter booms provide better control and structural stability. We usually examine the workshop layout before deciding.
Several layout factors influence boom selection:
distance between workstations
machine placement
operator walking paths
storage rack positions
If the boom reaches too far, the crane may lose efficiency. If the reach remains too short, operators must reposition loads repeatedly.
| Boom Length | Typical Coverage Area |
|---|---|
| 2–3 m | Small workstations |
| 3–5 m | Medium workshops |
| 5 m and above | Large production areas |
A well-matched reach reduces unnecessary movement and improves workflow across the production floor.
Hook height describes the maximum vertical lifting position of the crane. We measure it from the floor up to the hook’s highest point. Vertical clearance often becomes a limiting factor in industrial buildings. Many facilities contain overhead equipment and structural components.
Common obstacles include:
ventilation ducts
ceiling lighting
structural beams
overhead conveyor lines
If these elements sit too low, they restrict lifting movement. Operators may struggle to position loads safely.
Important planning considerations include:
building ceiling height
hoist body dimensions
maximum lifting distance
clearance above machines
| Height Factor | Impact on Operation |
|---|---|
| Ceiling clearance | Prevents collisions |
| Hoist body size | Reduces effective lifting height |
| Load dimensions | Influences placement space |
Careful planning ensures the crane lifts freely across the entire working zone.
Mobility defines one of the biggest advantages of portable jib cranes. Operators can move them between workstations instead of installing permanent lifting equipment. Casters or heavy-duty wheels support this movement. However, floor conditions strongly affect performance. Smooth concrete floors allow easy rolling and precise positioning. Rough industrial floors require stronger wheels and reinforced caster assemblies.
Several mobility features deserve attention:
caster load capacity
wheel material durability
locking brake systems
turning radius
Locking mechanisms play an important role during lifting. Once the crane reaches the correct position, the wheels must remain stable under load.
| Wheel Material | Suitable Environment |
|---|---|
| Polyurethane | Smooth factory floors |
| Steel | Heavy industrial areas |
| Rubber | Noise-sensitive workplaces |
Good maneuverability helps operators move around machinery, assembly lines, and tight workspaces.
The hoist system performs the actual lifting work. Portable jib cranes support several hoist types. Each design fits different workloads and operating conditions. Selecting the correct hoist improves lifting speed, operator comfort, and overall productivity.
Manual hoists operate through a hand chain system. Operators pull the chain to raise or lower the load. The design stays simple and reliable. They work best in situations involving light loads or occasional lifting. Maintenance requirements remain minimal, and initial costs stay relatively low.
Common applications include:
maintenance workshops
equipment repair areas
small manufacturing facilities
Electric hoists rely on motor-driven lifting systems. Operators control them using push-button pendants or remote controls. They handle loads faster and reduce physical effort for workers. Because of this efficiency, many factories install them in areas involving repetitive lifting operations.
Key advantages include:
improved productivity
consistent lifting speed
lower operator fatigue
Electric hoists often appear in assembly lines, packaging stations, and material transfer zones.
Pneumatic hoists operate using compressed air instead of electricity. This design eliminates electrical sparks during operation. For environments containing flammable materials, this feature becomes critical. Many industries rely on pneumatic hoists to maintain safety standards.
Typical operating environments include:
chemical processing plants
oil and gas facilities
explosive manufacturing areas
| Hoist Type | Typical Application |
|---|---|
| Manual | Light, occasional lifting |
| Electric | Frequent industrial lifting |
| Pneumatic | Hazardous environments |
Many facilities use different lifting systems for moving materials. Each type of crane works best in specific situations. When choosing a portable jib crane, it helps to compare it against other common material handling cranes used in factories and warehouses.

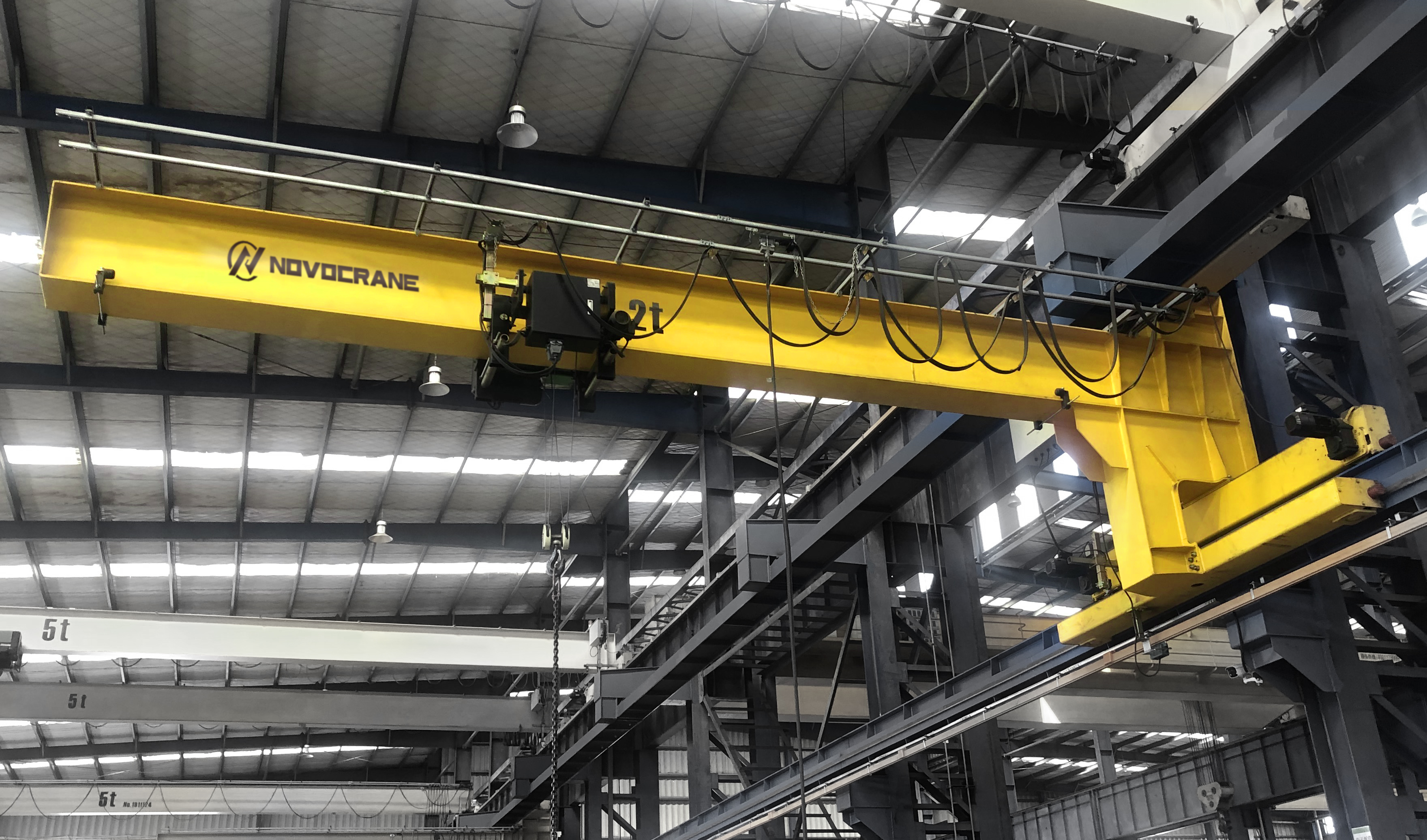

A portable jib crane and a fixed jib crane share a similar structure. Both use a vertical mast, a rotating boom, and a hoist that lifts loads. The difference appears in how they are installed and used. A portable model stands on a mobile base. Workers can roll it to another workstation when needed. No permanent foundation required. This flexibility makes it ideal for workshops that frequently change layouts. A fixed jib crane attaches permanently to a floor foundation, wall, or structural column. Once installed, it stays in one place and supports regular lifting operations for that specific station.
Mobility and Installation Differences
| Feature | Portable Jib Crane | Fixed Jib Crane |
|---|---|---|
| Installation | No permanent foundation required | Bolted to floor, wall, or column |
| Mobility | Can move between work areas | Stationary installation |
| Setup Time | Quick setup | Requires structural installation |
| Flexibility | Highly flexible | Limited to one workstation |
A workstation crane system focuses on covering a larger workspace. Its structure differs from a jib crane. Instead of rotating around a single point, it uses tracks or bridges to move loads across an area. A portable jib crane rotates around its mast. This motion creates a circular working zone around the crane. The hoist travels along the boom while the arm swings left or right. A workstation crane moves along rails or bridge structures. The load travels across a rectangular workspace, reaching multiple points along the track.
Coverage Area Comparison
| Crane Type | Coverage Shape | Movement Style |
|---|---|---|
| Portable Jib Crane | Circular or semi-circular | Rotating boom |
| Workstation Crane | Rectangular | Bridge or monorail track |
In practice, the difference affects layout planning. A portable jib crane works well in individual workstations. Operators stand near the base. They rotate the boom and move the load where needed. Workstation cranes fit assembly lines and production rows. Loads travel along tracks between multiple stations.
Workspace Layout Considerations
Portable jib cranes offer advantages when:
Workspaces remain compact
Equipment surrounds the operator
Loads must swing around machines
An overhead crane operates across a building structure. Large beams support the system. Trolleys move along long runways installed near the ceiling. A portable jib crane works closer to the ground. Its boom rotates around a central mast. It lifts and positions loads within a smaller radius.
Cost and Installation Differences
| Factor | Portable Jib Crane | Overhead Crane |
|---|---|---|
| Installation | Minimal structural changes | Requires building support structure |
| Cost | Lower purchase and installation cost | Higher equipment and installation cost |
| Setup Time | Fast installation | Longer installation process |
Portable jib cranes often become the budget-friendly option. Many small workshops choose them first. Overhead cranes require significant planning. Engineers must check building strength. Structural supports might need reinforcement.
Lifting Capacity and Operational Scope
Overhead cranes usually handle very heavy loads and large spaces. They travel across entire factory bays. Portable jib cranes serve localized lifting tasks. They support smaller loads but provide quick positioning and flexibility.
Typical lifting scenarios include:
machine part handling
loading workbenches
moving components between stations
In facilities where multiple lifting systems operate together, a portable jib crane sometimes acts as a support crane under a larger overhead system.
One important task involves lubricating moving components. Rotating joints, bearings, and pivot points create friction during use. Without lubrication, parts wear faster and movement becomes rough. Operators also inspect bolts and structural fasteners. Vibrations during lifting may loosen them gradually. Tight connections protect the boom, column, and base structure.
Typical routine checks include:
Lubricating pivot joints and rotation bearings
Inspecting bolts, nuts, and structural fasteners
Checking the hoist mounting connection
Looking for visible cracks or deformation
Confirming smooth boom rotation
| Maintenance Item | Inspection Purpose | Recommended Frequency |
|---|---|---|
| Pivot joints | Reduce friction and wear | Weekly |
| Structural bolts | Maintain frame stability | Weekly |
| Hoist mounting | Prevent load imbalance | Weekly |
| Boom structure | Detect damage early | Monthly |
These small inspections support smooth lifting and stable crane movement.
A: Most portable jib cranes handle light to medium lifting tasks. Typical capacities range from 250 kg to 2 tons, depending on the design and base stability. Some heavy-duty models can reach 3–5 tons, but mobility often decreases at higher capacities.
A: They can be used outdoors if built from corrosion-resistant steel and equipped with weather-protected components. Outdoor environments often require protective coatings and stable ground surfaces.
A: It depends on workload. Manual hoists work for light, occasional lifting. Electric hoists suit frequent industrial lifting. Pneumatic hoists fit hazardous environments where sparks must be avoided.
A: Required space depends on the base size and boom length. Most portable jib cranes need enough room for the base footprint plus the full circular working radius of the boom.
Choosing the right portable jib crane becomes easier when you evaluate load capacity, boom reach, hook height, mobility, and hoist configuration. Each factor influences lifting efficiency, operator safety, and long-term equipment reliability. By understanding how portable jib cranes compare with fixed jib cranes, workstation cranes, and overhead systems, you can better match the crane to your workspace and production layout.
