Steel Plate Handling Device

Product Appearance

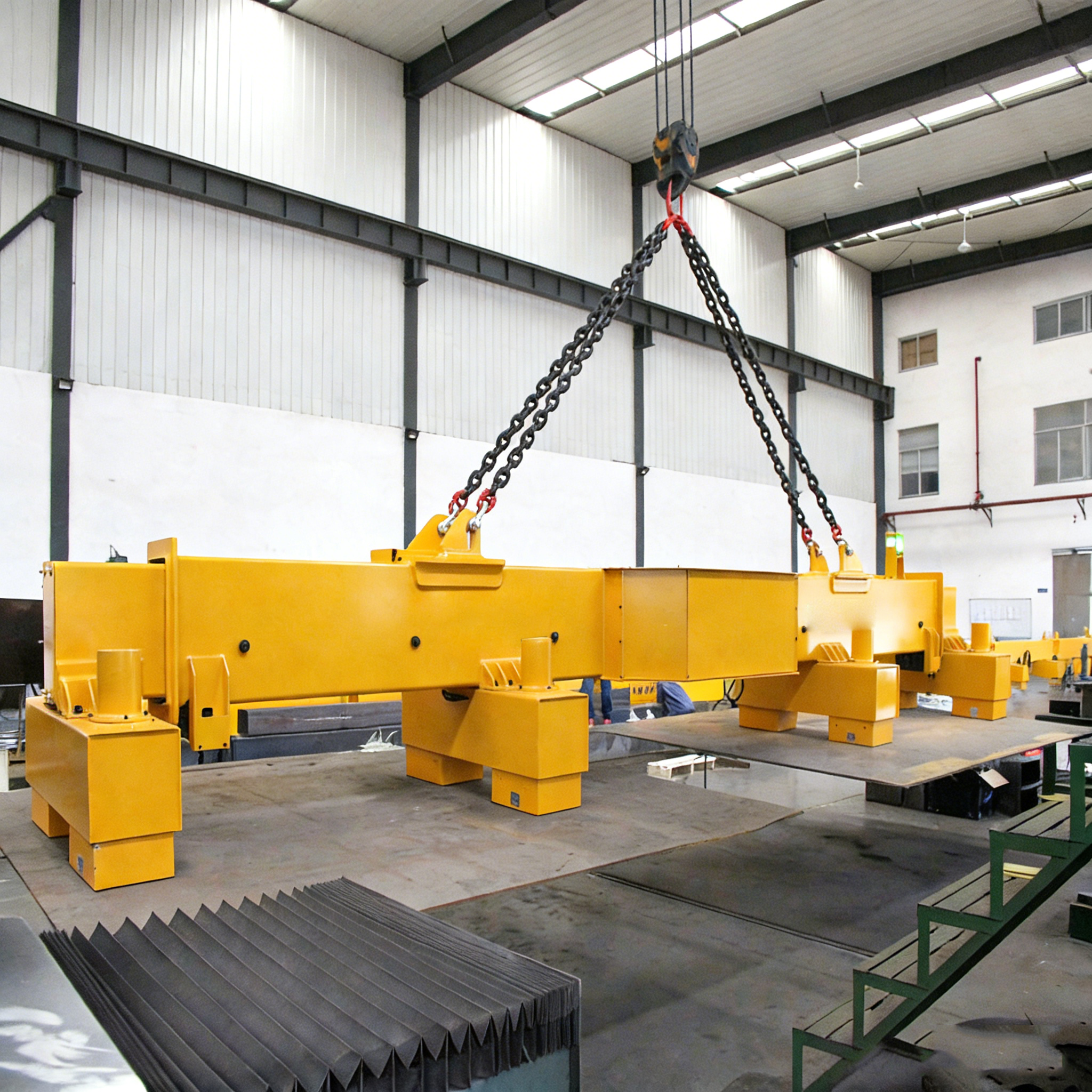

This robust device features a heavy-duty, welded steel frame with a clean, industrial finish, typically corrosion-resistant paint. Its compact and symmetrical design incorporates wide, padded contact pads or arms that directly cradle the steel plate. Prominent, easy-access locking indicators and heavy-duty levers are visibly positioned. Safety markings and capacity labels are clearly stenciled on the main body for instant identification.

Mechanism Design

The core mechanism utilizes a self-locking clamping system, often powered by a manual hydraulic or mechanical scissor mechanism. When positioned, actuating the central lever causes the clamping arms to close evenly and simultaneously, applying uniform pressure across the plate's surface. An integrated safety lock secures the clamp in the closed position during lifting. The design ensures the plate is gripped firmly without marring its surface.

Standard Parts

For reliability and easy maintenance, the device incorporates high-grade standard components. These include durable pivot pins and bushings for smooth articulation, standardized hydraulic cylinders (if applicable), and replaceable high-friction polyurethane or elastomer pads on the clamping surfaces. All load-bearing pins and bolts are manufactured to recognized industry standards, ensuring strength and interchangeability.
