Mold Handling Device

Product Appearance

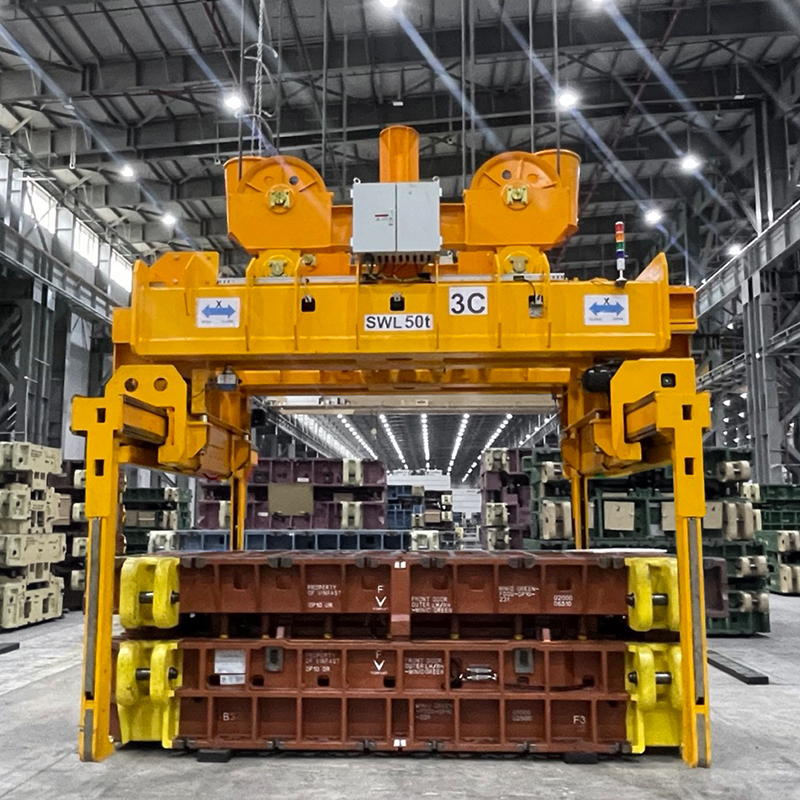

This robust equipment features a low-profile, rigid steel frame designed for stability under extreme loads. Its key visual components include wide-adjustment fork arms or rotating hooks that securely engage with the mold's lifting points. The unit is typically finished in a high-visibility, durable industrial coating. An ergonomic control pendant on a flexible cable allows the operator to maintain a safe distance during handling. The overall design prioritizes a clean, functional aesthetic that emphasizes strength and precision.

Mechanism Design
At its core, the device utilizes a electromechanical or hydraulic scissor-lift mechanism, providing smooth vertical travel for controlled lifting and lowering. Precision guide columns ensure exceptional stability and prevent lateral sway. The fork arms or hooks often incorporate fine-adjustment mechanisms (manual or powered) for perfect alignment with mold cavities. An integrated rotation module, available in many models, allows for 360-degree mold positioning, enabling flawless placement into the machine platen without manual realignment.

Standard Parts
To guarantee reliability, longevity, and ease of maintenance, the device is assembled using premium industry-standard components. This includes high-capacity ball bearings, hardened steel pins and bushings at all pivotal joints, commercial-grade hydraulic cylinders or servo motors, and heavy-duty roller guides. Electrical systems are built around reputable PLC controllers and sealed connectors. The use of standardized parts ensures readily available replacements and simplifies service, maximizing equipment uptime.
