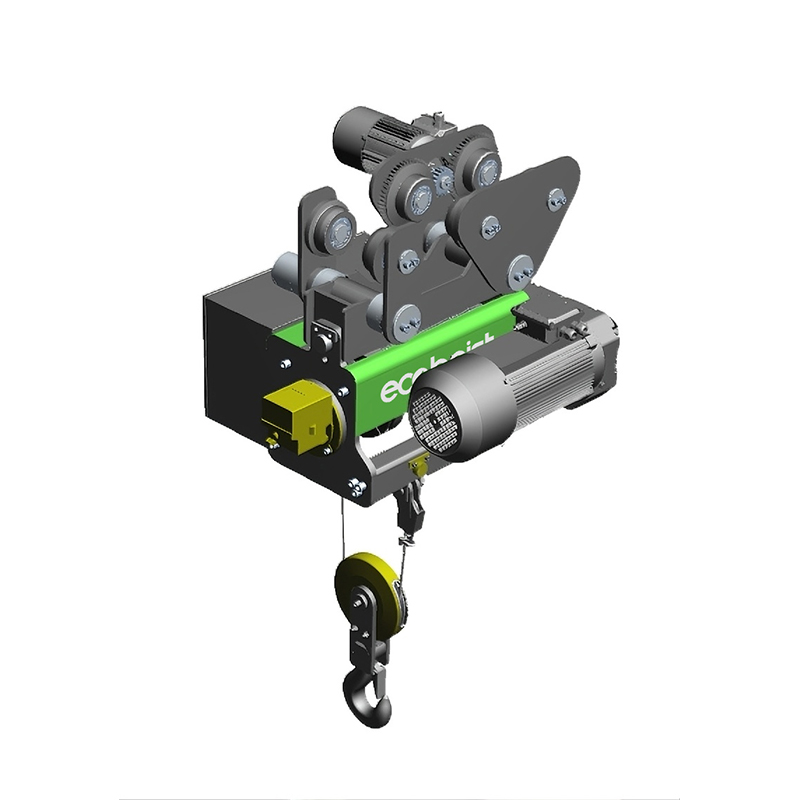

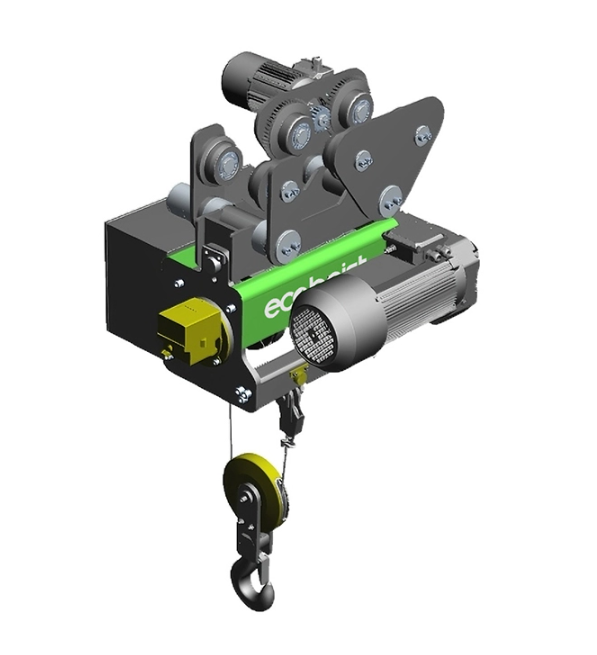

Normal Headroom Wire Rope Hoist-ECON

Product Specifications

Key Features & Benefits

Modular Design for Easy Maintenance

Adopting a modular structure, the hoist’s core components (motor, reducer, brake) are independently assembled, simplifying installation and reducing maintenance downtime. The aluminum alloy housing of the main body not only reduces overall weight but also enhances corrosion resistance, extending the equipment’s service life.

Efficient and Precise Lifting Performance

Equipped with a full inverter speed control system, the hoist ensures smooth lifting and lowering, minimizing load sway during transportation and enabling precise positioning of heavy objects. The dual-speed motor (high speed for rapid movement, low speed for precision operations) meets both efficiency and accuracy requirements of different working scenarios.

Reliable Safety Configuration

With a protection class of IP55 and insulation class F, the hoist withstands harsh industrial environments with dust and moisture. It is also equipped with multiple safety devices: the lifting limit switch prevents over-lifting, the overload protection system shuts down immediately when exceeding the rated capacity, and the prominent red emergency stop button ensures rapid shutdown in emergencies, eliminating falling risks.

Energy-Saving and Low-Noise Operation

Compared with traditional hoists, this model features optimized motor design and efficient gear transmission, reducing energy consumption by up to 20%. Its working noise is controlled between 65-75 dB, creating a quieter working environment for operators and complying with industrial noise standards.

Wide Compatibility with Existing Systems

As a "plug-and-play" upgrade replacement, it directly fits LD single-girder and European-style single-girder crane tracks without modifying the existing crane structure, significantly reducing the cost of equipment renewal for enterprises.

Application Scenarios

Factory Production Lines & Warehouse Logistics

Ideal for lifting and transferring raw materials, semi-finished products, and finished parts on assembly lines, such as auto parts processing, electronic component manufacturing, and mechanical equipment assembly.

Suitable for loading, unloading, and stacking goods in standard-height warehouses, including palletized cargo, packaging materials, and small equipment, improving storage space utilization and handling efficiency.

Old Equipment Renovation & Small-Scale Heavy-Duty Operations

An optimal replacement for outdated CD/MD hoists in aging workshops, enhancing operational safety and efficiency while reducing long-term maintenance costs for enterprises.

Applicable to small and medium-sized enterprises for lifting heavy objects within 10 tons, such as tool installation, mold replacement, and equipment maintenance.

Installation & Maintenance Tips

Installation Precautions

Ensure the crane track is level and load-bearing meets the hoist’s requirements; check track smoothness to avoid operational jams.

Hire professional technicians for installation, strictly following the product manual to ensure correct connection of electrical circuits and firm fixation of the trolley.

Conduct a trial run after installation: test lifting/lowering, horizontal movement, and safety device responsiveness to confirm normal operation.

Routine Maintenance

The reducer adopts lifelong lubrication; no additional oil injection is required, but regularly check for oil leakage.

Inspect the steel wire rope weekly for wear, deformation, or broken strands; replace immediately if defects are found.

Clean the motor and electrical control box monthly to remove dust and debris, ensuring good heat dissipation and electrical contact.

Calibrate the overload protection and limit switch every 6 months to maintain accuracy.
