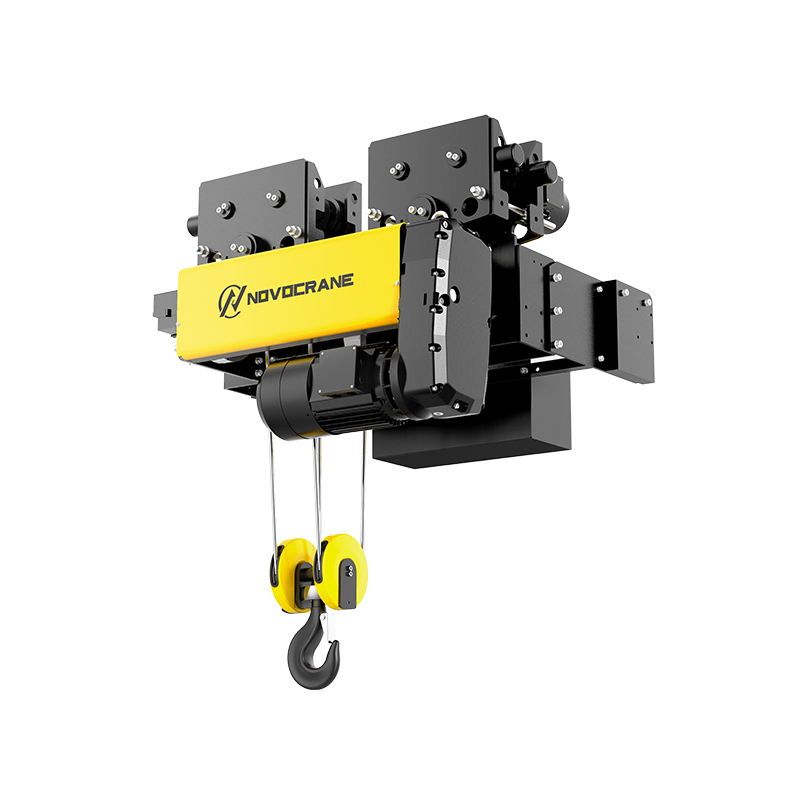

Normal Headroom Wire Rope Hoist-NWHN

Product Appearance

The Novocranes Standard Headroom Electric Hoist features a classic, open-structure layout with a robust and professional appearance. Its design prioritizes component accessibility; while not as extremely compact as the C-type hoist, it offers significant convenience for maintenance and inspection. The main body is also constructed from high-strength steel, ensuring exceptional durability. The control unit can be an ergonomic wired pendant or a wireless remote, both offering a clear and intuitive user interface. Although its design is practical, it embodies an industrial aesthetic of being easy to maintain, sturdy, and durable in every detail.

Mechanism Design

Type Description

Lifting Mechanism The hoist's lifting system is also powered by Novocranes' core "3-in-1" drive unit (high-efficiency motor, hardened-gear reducer, safety brake), guaranteeing strong, smooth, and low-noise power output. It comes standard with Variable Frequency Drive (VFD) technology, which enables smooth transitions during hoist startup and stopping, significantly reducing load impact and sway. Even as a standard model, it can accomplish precise material placement tasks.

Safety Mechanism In terms of safety, the Standard Headroom Hoist is fully on par with the premium series, with no compromises. It is equipped with a comprehensive safety protection system, including: a dual-safety brake system for redundant protection; an electronic overload limiter to prevent the equipment from operating beyond its capacity; as well as a motor thermal protection system and travel limit switches to protect the motor from damage and prevent the hook from over-traveling.

Standard Parts

High-Tensile FEM-Standard Steel Wire Ropes: Ensure strong, reliable load lifting capacity and excellent fatigue resistance.

Modular "3-in-1" Drive Units: Integrate the motor, reducer, and brake for high efficiency, low noise, and great durability.

Ergonomic Control Units: Provide comfortable and intuitive wired or wireless operation.

Dual-Safety Brake Systems: Offer redundant protection to ensure braking safety under all conditions.

Electronic Load Limiters: Accurately prevent overloading, complying with and exceeding international safety regulations.

Motor Thermal Protectors: Safeguard the motor from overheating damage, extending the equipment's service life.
