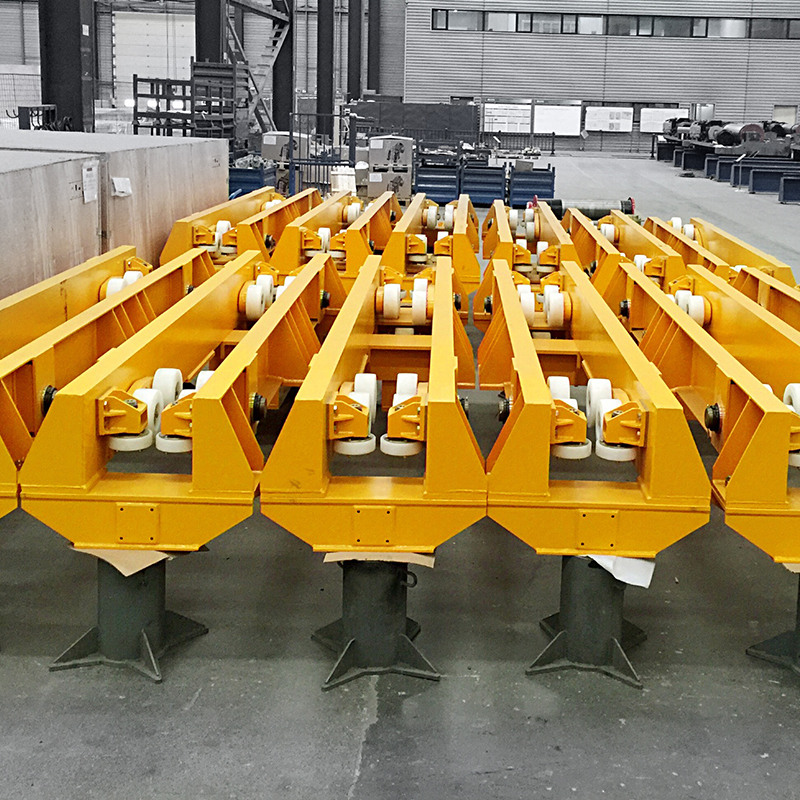

Suspension Crane End Carriage

Product Appearance
The end carriage features a compact, heavy-duty wstructure with a clean, galvanized or powder-coated finish for corrosion resistance. Its streamlined design includes four enclosed wheels—positioned in pairs on a rigid frame—with external protective guards to prevent debris ingress. The assembly is equipped with standardized mounting holes and alignment slots for easy installation. Visual indicators, such as laser-etched part numbers, facilitate identification and maintenance.

Mechanism Design
At its core, the carriage incorporates a balanced four-wheel configuration, with two driven wheels and two idler wheels to ensure even load distribution and smooth travel. Precision-machined wheel axles are supported by sealed roller bearings, minimizing friction and allowing for quiet, low-vibration operation. An integrated adjustment mechanism enables precise wheel alignment and track gap compensation, reducing rail wear and preventing derailment. The design also allows for optional anti-sway and braking modules.

Standard Parts
The carriage utilizes high-grade standardized components to ensure reliability and interchangeability. All standard parts are sourced from certified suppliers, guaranteeing consistent performance and simplified replacement.
