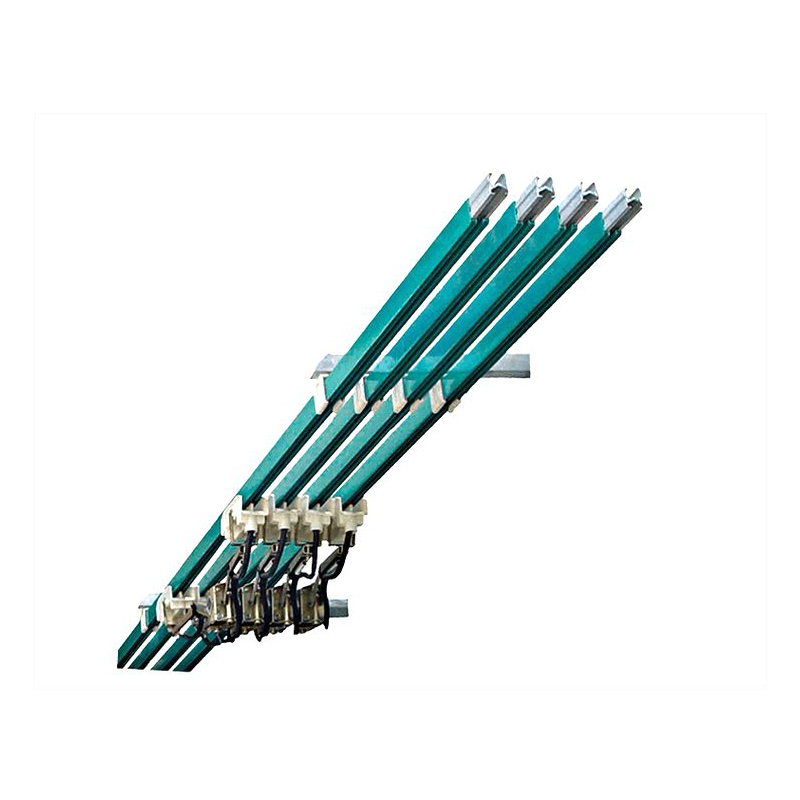

Single Phase Busbar Line

Product Appearance
The busbar line features a sleek, enclosed design with a robust insulating housing that protects against dust, moisture, and accidental contact. Its compact profile allows for easy installation in tight spaces, while the smooth, durable exterior finish ensures long-term resistance to wear and corrosion. Standard color coding (typically gray or orange) enhances visibility and safety identification. The streamlined structure includes clearly marked connection points for straightforward wiring and maintenance.

Mechanism Design
Internally, the busbar utilizes high-conductivity copper or aluminum alloy bars, precision-formed to maximize current carrying capacity and minimize electrical losses. The design incorporates secure clamping mechanisms and expansion joints to accommodate thermal expansion and mechanical vibrations, ensuring consistent performance under dynamic loads. Integrated insulating barriers and flame-retardant materials enhance safety by preventing short circuits and reducing fire risks. The system supports modular extensions, allowing flexible adaptation to varying layout requirements.

Standard Parts
Key standard components include straight busbar sections, elbow connectors, flanged ends, and mounting brackets made from galvanized steel or aluminum for corrosion resistance. All hardware (bolts, nuts, washers) is selected for high tensile strength and electrical compatibility. Insulating caps, phase markers, and protective covers are included to ensure compliance with international safety standards such as IEC and UL. These standardized parts facilitate easy assembly, replacement, and scalability across different installation environments.
