Cable Reel

Product Appearance

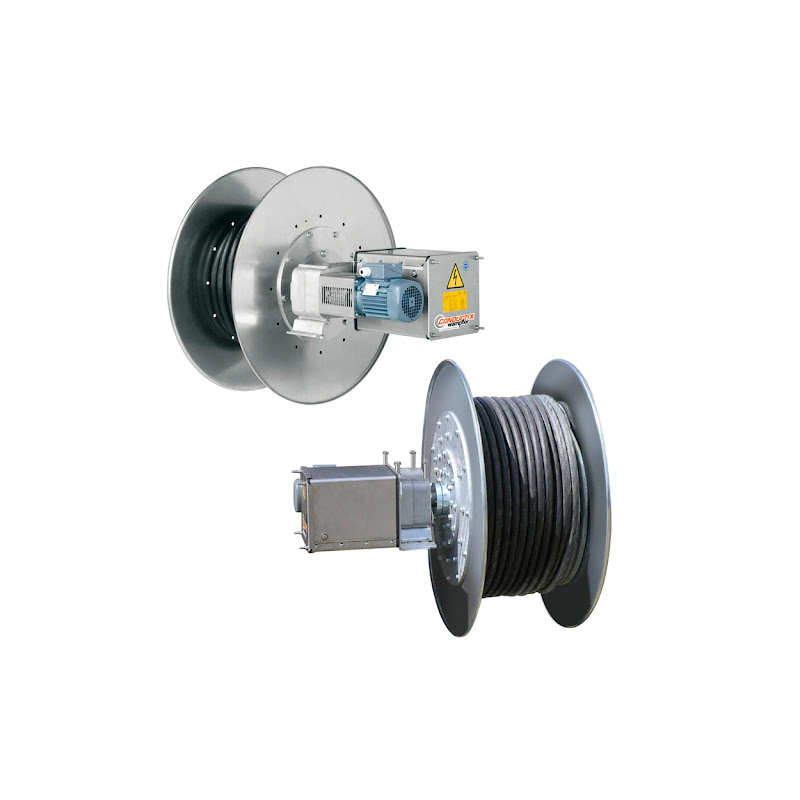

The Cable Reel features a robust cylindrical drum, typically constructed from high-strength steel or durable aluminum alloy. Its compact and balanced structure is engineered for smooth rotation, often coated with corrosion-resistant paint for long-term use in demanding environments. The drum is neatly wound with insulated cables, and the overall design emphasizes clean integration into crane systems without obstructing movement or maintenance access.

Mechanism Design

At its core, the Cable Reel employs a spring-driven or motorized rotary mechanism that automatically adjusts cable length during trolley or bridge movement. A built-in slip ring assembly (for power reels) ensures uninterrupted electrical transmission while rotating. This mechanism maintains consistent cable tension, prevents slack or over-stretching, and allows for seamless bidirectional operation. The design prioritizes minimal friction, low maintenance, and reliable performance under frequent cycling.

Standard Parts

Key standard components include: a hardened steel shaft for stable rotation, high-grade bronze or composite bearings for smooth support, industrial-grade springs (for spring-type reels), and modular slip rings with copper-graphite contacts. Mounting brackets, tension adjustment bolts, and cable clamps are also provided as standard, ensuring straightforward installation and compatibility with common crane configurations.
