Modular Dual-speed Electric Chain Hoist

Product Appearance

Exterior Coating & Durability

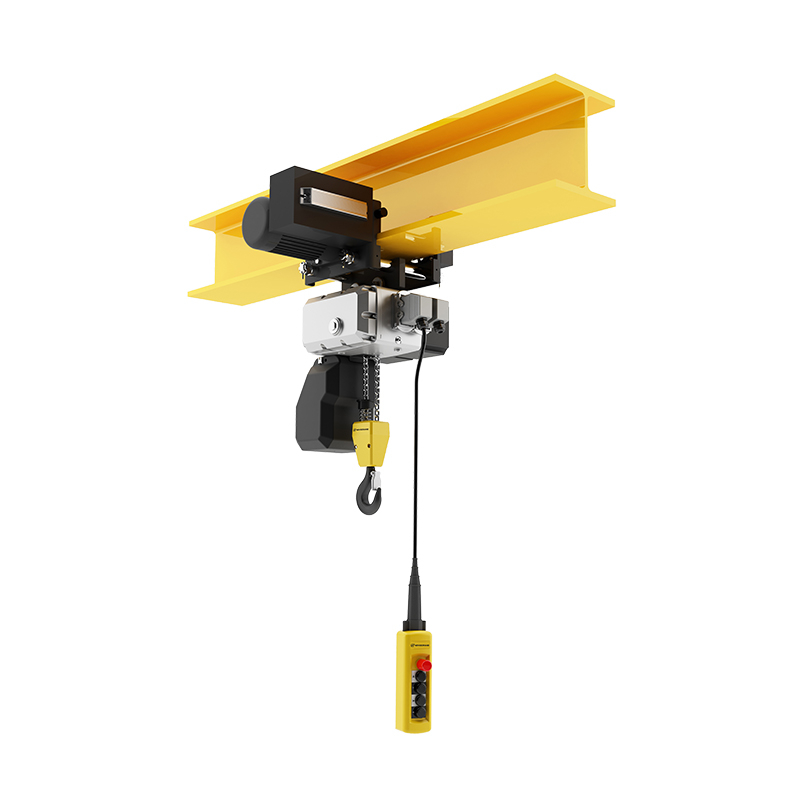

Crafted with a focus on both functionality and aesthetics, the NCH Electric Chain Hoist features a sleek silver-gray painted body that resists corrosion and maintains a professional look in any workspace. The coating undergoes strict adhesion and weather resistance tests to ensure longevity in high-humidity or dusty settings.

Spatial Design & Installation Flexibility

The compact structure minimizes spatial occupancy, making it ideal for areas with limited overhead clearance. Removable upper lifting lugs enhance installation flexibility, allowing quick mounting on different overhead structures without specialized modification tools.

Protective Components for Core Parts

The durable black chain box protects the lifting chain from dust, debris, and external damage. The hook and chain assembly is designed for easy visibility and smooth operation, with a streamlined profile that reduces interference during lifting tasks. Every external component is engineered for longevity, ensuring the hoist retains its visual and functional integrity even in high-frequency use scenarios.

Mechanism Design

Modular Structure for Maintenance

At the core of the NCH Electric Chain Hoist is a robust mechanism designed for maintenance-free operation and long-term reliability. The modular design enables flexible product combinations, simplifying both assembly and future maintenance—technicians can replace individual components without disassembling the entire mechanism.

Motor & Speed Control System

A standard dual-speed motor provides precise control over lifting speeds, catering to both rapid transfer (for heavy, non-fragile loads) and delicate positioning (for precision components). The motor’s copper winding ensures low heat generation during continuous operation, extending service life.

Safety Brake & Limit Protection

The electromagnetic disc brake system ensures smooth, noise-free stopping, enhancing operational safety and reducing workplace disruption. Upper and lower lifting limit switches are integrated to prevent overtravel, safeguarding both the equipment and the load from accidental damage.

Trolley Matching Options

For enhanced versatility, the hoist can be paired with either manual or electric trolleys. The optional variable-frequency-controlled electric trolley further optimizes movement efficiency, delivering a dynamic handling experience with adjustable travel speeds.

Standard Parts

Power & Drive Components

The NCH Electric Chain Hoist is equipped with high-quality standard parts that guarantee performance and durability. Key components include a reliable dual-speed motor, engineered to deliver consistent power while minimizing energy consumption. All main drive components are designed to require no replacement during safe and proper use, reducing maintenance costs significantly.

Structural & Protective Parts

The silver-gray painted body not only offers protection but also serves as a distinctive visual identifier. Removable upper lifting lugs facilitate easy mounting, while the black chain box ensures the lifting chain remains in optimal condition. The hook and chain assembly is manufactured to strict standards, providing strong load-bearing capacity and resistance to wear.

Electrical System Specifications

Control voltage components operate at 48V, ensuring safe and stable operation (reducing electric shock risks for operators). The 380V/3P/50Hz power supply compatibility ensures seamless integration with standard industrial power systems, eliminating the need for additional voltage transformers in most factories.

FAQ

What makes the NCH Electric Chain Hoist suitable for complex environments?

The NCH Electric Chain Hoist is built with durable materials and a sealed design that resists dust, moisture, and temperature fluctuations. Its modular configuration allows it to adapt to different spatial constraints and load requirements, while the reliable braking and limit switch systems ensure safe operation even in challenging conditions.

Can the hoist be customized for specific lifting needs?

Yes, the modular design of the NCH Electric Chain Hoist enables flexible configurations of lifting capacities, lifting speeds, and operating levels. Customers can request adjustments to align with their unique handling tasks, whether for specialized assembly processes or specific load sizes.

Is professional maintenance required for the NCH Electric Chain Hoist?

The main components of the NCH Electric Chain Hoist are maintenance-free under safe and proper use conditions. Routine inspections of the chain, hook, and limit switches are recommended to ensure optimal performance, but no regular component replacements are necessary, significantly reducing maintenance efforts and costs.
