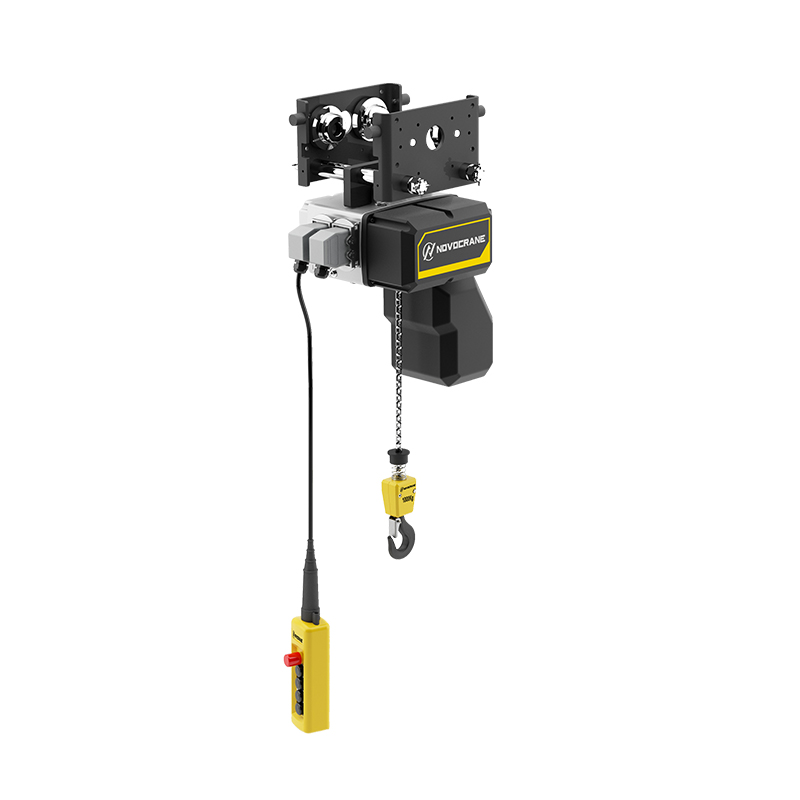

Manuel Trolley type Electric Chain Hoist

Product Appearance

The NCH Electric Chain Hoist features a compact and sleek appearance, with a silver-gray painted body that is both aesthetically pleasing and durable. Its modular design results in a streamlined structure, minimizing the hoist’s footprint and making it suitable for installation in confined spaces. The removable upper lifting lugs add to the hoist’s versatility, allowing for easy mounting on various lifting equipment such as flexible beams, monorail cranes, jib cranes, or bridge cranes. The black chain box protects the chain from damage and contamination, while the ergonomic design of the operation components ensures comfortable and convenient use.

Mechanism Design

Lifting Mechanism

The core lifting mechanism of the NCH Electric Chain Hoist is engineered for efficiency and reliability. The standard dual-speed motor provides flexible lifting speeds, allowing for both fast cargo transfer and precise positioning. The electromagnetic disc brake integrated into the mechanism ensures smooth and quiet operation, reducing noise during lifting and lowering. The high-quality chain, designed to withstand heavy loads, works in conjunction with the lifting mechanism to deliver stable and consistent performance, even in high-frequency use scenarios.

Modular Assembly Mechanism

The modular design is a key feature of the NCH Electric Chain Hoist’s mechanism. It allows for flexible combination of components, including different lifting capacities, lifting speeds, and operating levels, to meet specific customer needs. This design not only simplifies product customization but also facilitates easy maintenance and replacement of parts. The modular assembly ensures that the hoist can be quickly adapted to changing working requirements, making it a flexible solution for diverse material handling tasks.

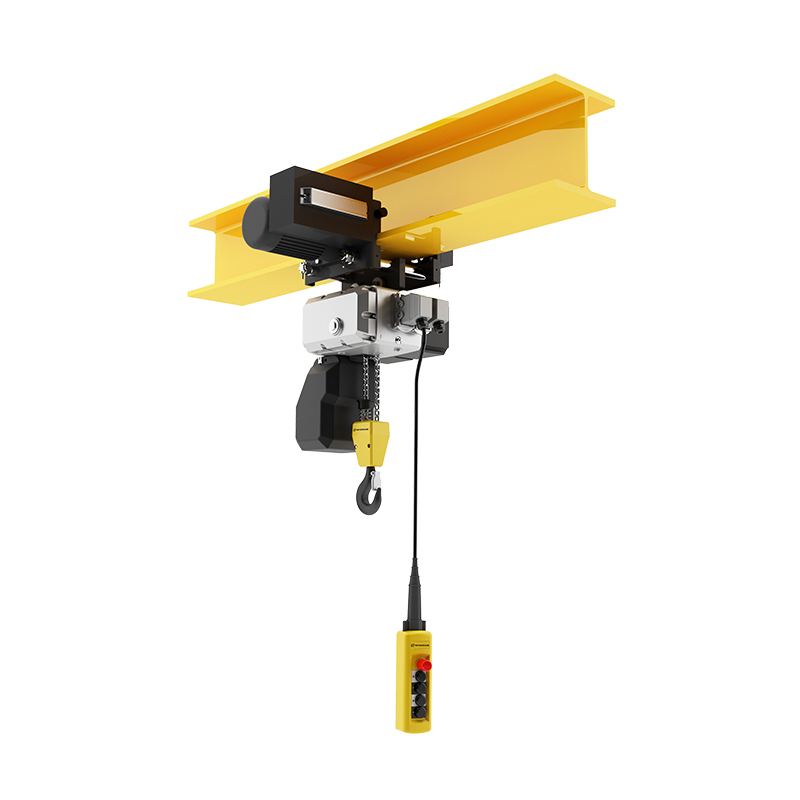

Trolley Compatibility Mechanism

The NCH Electric Chain Hoist is designed to be compatible with both manual and electric trolleys. The variable-frequency-controlled electric trolley option enhances the hoist’s mobility and efficiency, allowing for precise movement along beams or rails. The trolley compatibility mechanism ensures smooth and stable movement of the hoist, enabling efficient positioning of loads in different areas of the workspace. This feature, combined with the hoist’s high lifting speeds, maximizes productivity and operational flexibility.

Standard Parts

Dual-Speed Motor: Provides flexible lifting speeds for different tasks.

Electromagnetic Disc Brake: Ensures quiet and reliable braking performance.

Durable Lifting Chain: Withstands heavy loads and harsh working conditions.

Black Chain Box: Protects the chain from damage and contamination.

Removable Upper Lifting Lugs: Facilitates easy mounting on various lifting equipment.

Upper and Lower Lifting Limit Switches: Prevents overtravel and ensures safe operation.

380V/3P/50Hz Power Supply: Ensures compatibility with standard industrial power sources.

48V Control Voltage: Provides safe and reliable control of the hoist.

Ergonomic Operation Interface: Facilitates easy and comfortable operation.

Modular Components: Allows for flexible customization and easy maintenance.

FAQ

What makes the NCH Electric Chain Hoist suitable for diverse working environments?

The NCH Electric Chain Hoist’s modular design is a key factor in its suitability for diverse working environments. It allows for customization of lifting capacities, lifting speeds, and operating levels to meet specific task requirements. The hoist can be installed with manual or electric trolleys on various lifting equipment, including flexible beams, monorail cranes, jib cranes, and bridge cranes, adapting to different workspace layouts. Additionally, its compact structure and light weight make it suitable for both small and large facilities, while its durable construction and environmental friendliness ensure reliable performance in harsh or eco-sensitive environments.

How does the NCH Electric Chain Hoist ensure precise positioning of loads?

The NCH Electric Chain Hoist achieves precise positioning through its standard dual-speed motor and variable-frequency-controlled electric trolley (when equipped). The dual-speed motor allows for slow, precise movement when positioning loads, while the variable-frequency control of the trolley enables smooth and accurate movement along the rail. The electromagnetic disc brake ensures stable stopping, preventing load swinging and ensuring precise placement. These features work together to minimize errors in load positioning, making the hoist ideal for assembly tasks and other applications where precision is crucial.
