A well-planned overhead bridge crane project begins with the workflow inside the plant, not with the steel beam itself. Before any fabrication or installation starts, the lifting task, workshop dimensions, and daily operating demands must be clearly defined. That is why many industrial users work with NOVOCRANE early in the project cycle. As a professional manufacturer and service provider of hoists and crane systems, NOVOCRANE helps customers turn layout data and production needs into practical lifting solutions that are easier to install, safer to operate, and more reliable over the long term.
The first step in building an overhead bridge crane is understanding the actual lifting job. Capacity is important, but it is only part of the decision. The size, shape, and handling pattern of the load all affect the crane design. A workshop moving steel sheets needs a different arrangement from one handling molds, machinery parts, or assembled equipment.
The lifting frequency also matters. Some cranes are used only for occasional maintenance, while others support repetitive production tasks throughout the day. A crane that serves multiple stations may need more travel flexibility and smoother positioning. If the application involves continuous movement, the structure and controls should be designed around that real operating rhythm.
Once the lifting task is clear, the next step is confirming the site conditions. A crane system must fit the building accurately from the beginning. Key information includes span, lifting height, available headroom, runway length, column strength, power supply, and any obstructions inside the bay.
Ignoring these details early often leads to avoidable site changes later. Lighting, ducts, roof bracing, and platform structures can reduce usable installation space. That is why crane design and building design should move together. At NOVOCRANE, project planning starts with real workshop data so the final crane solution matches the plant instead of forcing expensive adjustments during installation.

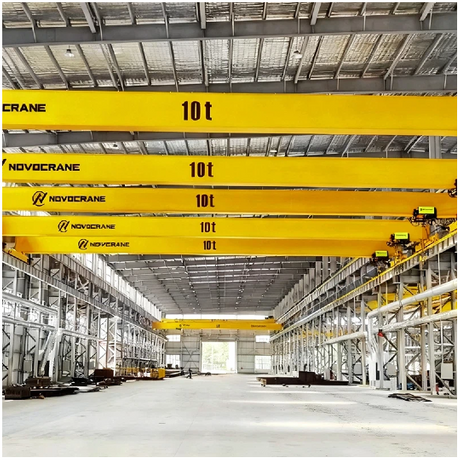

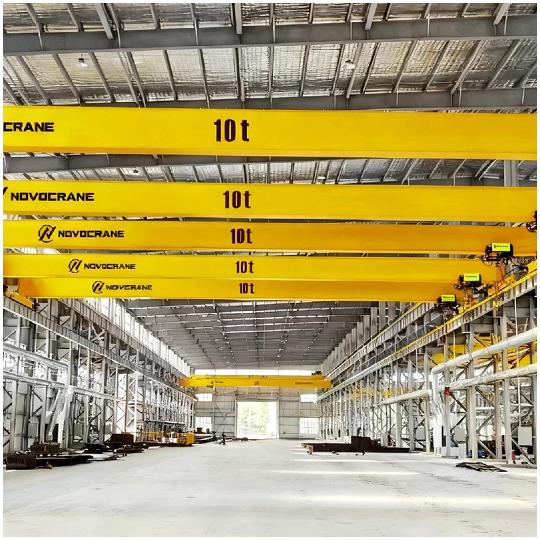

The bridge layout is one of the most important decisions in the project. A single girder crane is often suitable for light to medium duty work and offers a lighter structure with efficient cost control. It is widely used in fabrication shops, warehouses, and general manufacturing areas.

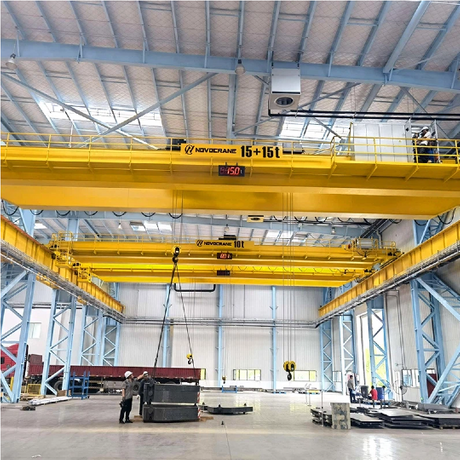

A double girder crane is usually the better choice when the plant needs higher lifting capacity, longer spans, greater hook height, or more frequent use. It also provides stronger support for demanding production environments where long-term performance matters more than the lowest initial cost.
Runway arrangement also shapes how the crane fits the building. A top-running crane travels on rails mounted above the runway beam and is commonly used in medium and heavy-duty applications. It is a strong option when the building can support a robust runway structure and the project needs wider coverage.
An under-running crane travels beneath the support structure and can be useful in some existing buildings where layout conditions are more limited. The correct choice depends on how the crane must move through the workshop and how the building is built.
In many facilities, limited height is the biggest design challenge. A low-headroom crane helps recover valuable lifting space and makes the system more practical in compact workshops. This is especially useful in retrofit projects where the building height cannot be changed. Instead of altering the structure, the crane design itself becomes the solution.
Option | Best fit | Main advantage | Limitation | Typical use case |
Single girder | Light to medium duty workshops | Lower structure weight and efficient cost | Less suitable for very heavy duty | Warehouses, fabrication shops |
Double girder | Heavy loads and longer spans | Stronger structure and higher lifting performance | Higher project complexity | Machinery plants, steel handling |
Top-running | New plants with strong runway support | Better coverage and heavy-duty capability | Needs suitable building support | General industrial production |
Under-running | Certain retrofit layouts | Useful in specific existing structures | Usually more limited in heavy-duty range | Existing workshops with layout constraints |
Low-headroom design | Buildings with restricted height | Improves usable lifting space | Requires accurate design integration | Compact bays and retrofit plants |
A crane should always be configured around real operating conditions. A system used for light workshop handling should not be designed the same way as one running frequent lifting cycles in a busy production area. Duty class, lifting height, and travel speed must all reflect the actual workload.
If these factors are ignored, the result is often either under-performance or unnecessary cost. A properly engineered overhead bridge crane feels balanced because every part of the system supports the real application.
The crane is more than a steel structure. Hoist selection, travel control, and operating features all affect how smoothly the system performs. Wire rope hoists are commonly used across many industrial applications because they provide stable lifting performance and broad adaptability.
Control method also matters. Some users prefer pendant control, while others benefit from radio remote control for better visibility and movement. In more demanding tasks, variable frequency drives improve smooth starts and stops, while anti-sway features help keep loads steady during travel. These decisions should be made early so the crane performs well from the first day of operation.
Site environment should be part of the first design discussion, not a late correction. Dust, heat, humidity, corrosive air, and hazardous zones all influence the crane structure, electrical protection, and service life. A crane for a clean indoor workshop needs a different configuration from one working in a chemical, coastal, or heavy fabrication environment.
This is where project-specific engineering becomes important. A crane that suits the real environment is more reliable, easier to maintain, and less likely to require modifications after delivery.
Runway preparation directly affects how the crane will travel in long-term service. If the runway alignment is poor, wheel wear, travel instability, and premature maintenance problems are much more likely. Good installation starts with accurate support steel, correct rail alignment, and proper site preparation before the bridge arrives.
During installation, the bridge structure, hoist, electrical system, and safety devices must all be assembled in the right sequence. This stage should not be rushed. The goal is not just to complete assembly, but to make sure the crane works as one integrated lifting system.
Electrical matching, motion checks, and safety verification are essential. When the project has been engineered correctly from the start, installation becomes more efficient and requires fewer site adjustments.
Before entering service, the crane should go through full testing and commissioning. No-load and load testing confirm lifting performance, travel behavior, and control response. Safety devices and braking functions must also be checked carefully.
Operator training is equally important. Even a well-designed crane performs best when operators understand proper control, inspection routines, and safe load handling. This final stage turns the installation into a working production tool.
Many crane projects appear simple at first, but once site details are reviewed, custom engineering becomes necessary. Building height, bay width, lifting path, environment, and future production plans often make a standard layout less effective than expected.
A crane that only matches the rated load may still cause problems in headroom, travel coverage, or operating efficiency. That is why project-based design often saves time and cost later. The goal is not to make the crane more complicated, but to make it fit the workshop correctly from the beginning.
NOVOCRANE supports customers through the full process of crane planning, design, and application. With German design principles, advanced technology, and strict quality control, the company provides cost-effective lifting solutions that match real industrial conditions.
For projects with space limits, NOVOCRANE can provide low-headroom solutions. For plants that need smoother motion and stronger handling control, the crane can be configured with suitable travel and control features. For more demanding environments, the system can be adapted to the site instead of relying on a generic standard arrangement. This practical engineering approach helps reduce rework, improve installation efficiency, and support more stable performance after commissioning.
Building an overhead bridge crane means planning the lifting task, building conditions, structural layout, control system, and working environment as one complete project. When these elements are aligned early, the crane becomes easier to install, safer to use, and more valuable in daily production. NOVOCRANE helps customers develop lifting systems that fit real facilities and real operating needs, from initial drawings to long-term use. If you are planning a new installation or upgrading an existing workshop, contact us today to discuss the right bridge crane solution for your project.
You should prepare the required lifting capacity, span, lifting height, runway length, power supply, workshop drawings, and a clear description of how the crane will be used in daily production.
Not always. A single girder crane is suitable for many light to medium duty applications, but a double girder design may be better when the workshop needs heavier lifting, longer span, or more frequent operation.
Low-headroom design helps recover usable lifting height in buildings where vertical space is limited. It is especially valuable in retrofit projects or compact workshops where the structure cannot be changed easily.
After installation, the crane should go through testing, commissioning, and operator training. This ensures the system performs correctly, safety functions are verified, and the crane is ready for reliable daily use.
