Square Bar Rail

Product Appearance

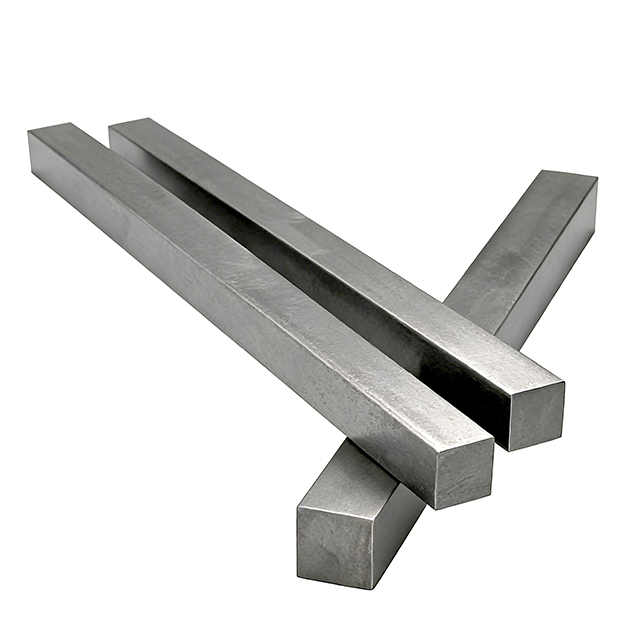

Featuring a solid, square-shaped bar design with a smooth ground finish, the Square Bar Rail provides a clean and robust profile. Its surfaces are precisely machined to ensure uniformity, and it is typically available in standard black oxide or galvanized coatings to resist corrosion. The clean edges and consistent cross-section allow for easy integration into various mechanical assemblies while maintaining a professional industrial appearance.

Mechanism Design
The rail utilizes a straightforward yet effective design where the square geometry offers increased contact area and improved load distribution compared to round rails. This design minimizes deflection and provides superior rigidity, ensuring precise alignment of moving parts. Pre-drilled mounting holes along its length facilitate secure installation, while compatibility with standard bearing blocks allows for smooth, low-friction movement along the axis.

Standard Parts
The Square Bar Rail is manufactured to international dimensional standards, ensuring interchangeability with common bearing housings, support blocks, and fasteners. It is compatible with widely used accessories. Available in multiple lengths and size profiles, it can be easily sourced and integrated into existing systems without requiring custom modifications.
