Open Winch for Heavy Duty Application

Product Appearance

Structural Frame & Durability

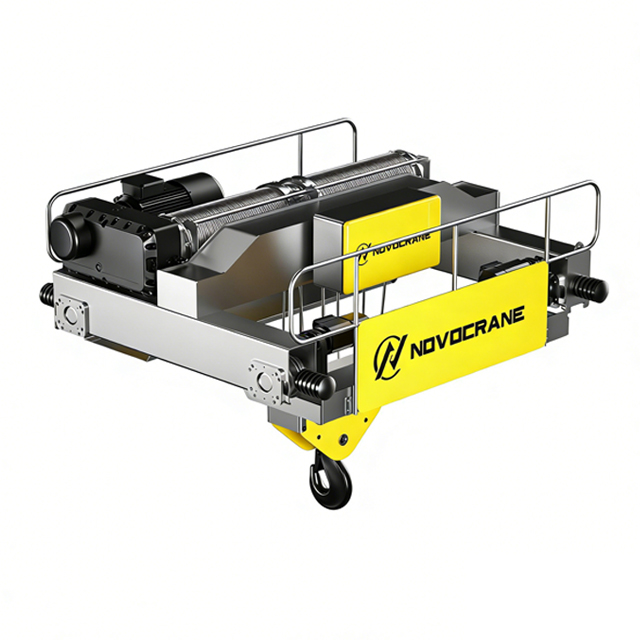

The NWW Series Heavy Duty Open Winch boasts a novel and compact design that maximizes functionality without compromising on space. Its high-strength frame (made of Q355B steel) ensures structural integrity under extreme loads, withstanding dynamic forces during sudden load changes.

Open Design Advantages

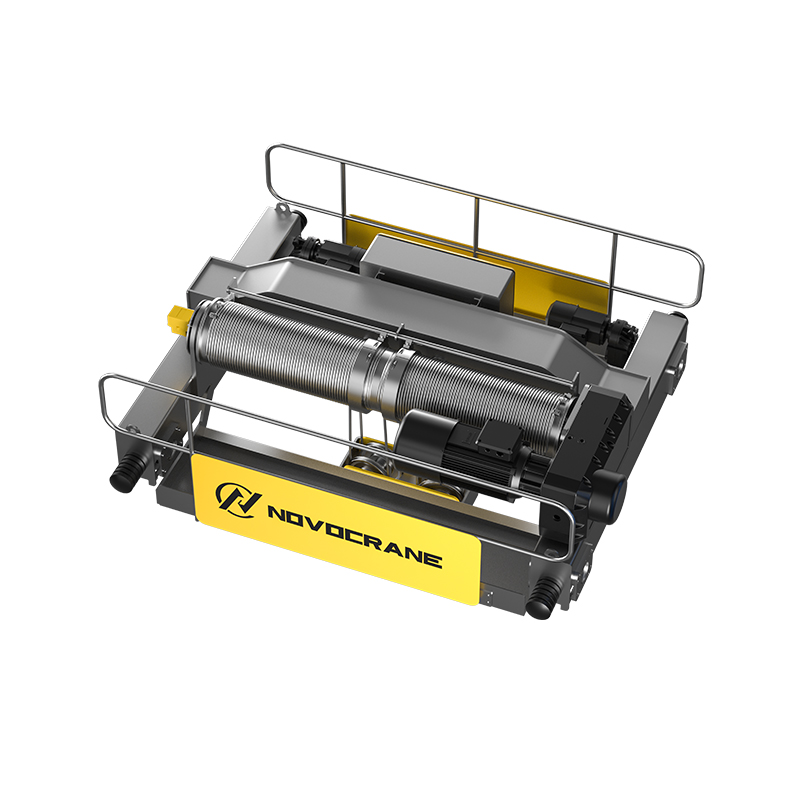

The open structure provides easy access to key components (such as wire ropes and brake systems) for inspections and maintenance, eliminating the need to disassemble outer casings. This design also reduces heat accumulation during continuous operation, protecting internal components from overheating.

Protective Finishes & Environmental Adaptability

The winch features a durable finish (epoxy resin coating) that resists corrosion and wear, making it suitable for both indoor and outdoor applications—including coastal areas with high salt spray concentrations. The integrated trolley maintenance platform offers a safe workspace for technicians, enhancing operational convenience.

Ergonomic Layout Optimizations

All external parts are engineered to withstand harsh industrial environments, with a focus on reducing visual clutter and improving overall ergonomics. Control panels are positioned at operator-friendly heights, and warning labels are clearly visible to prevent operational errors.

Mechanism Design

Motor & Speed Regulation System

Engineered for high-performance heavy-duty operations, the NWW Series Heavy Duty Open Winch incorporates advanced mechanism design elements. A frequency-controlled motor with closed-loop control delivers precise speed regulation, ensuring stable and smooth load movement—even when handling loads with uneven weight distribution.

Dual Brake Safety Configuration

The dual brake system—available in two configurations (electric contact disc + electromagnetic disc or electric contact disc + hydraulic)—provides redundant safety. This redundancy ensures that if one brake fails, the other immediately engages, preventing accidental load movement and ensuring reliable stopping power.

Height Limiter Protection Levels

A four-stage cam height limiter (up, down, upper deceleration, and pole stop) offers comprehensive protection against overtravel. The deceleration function slows the winch before reaching the limit, reducing impact forces and safeguarding both the equipment and the surrounding workspace.

Transmission Efficiency Enhancements

The high-efficiency transmission system (equipped with precision-machined gears) minimizes energy loss, improving overall operational efficiency while reducing wear on components. Gear teeth are treated with carburizing and quenching processes to enhance surface hardness and fatigue resistance.

Standard Parts

Power Core Components

The NWW Series Heavy Duty Open Winch is equipped with premium standard parts that meet international quality standards. Key components include a high-performance Nova motor, designed for durability and consistent power output—even in voltage fluctuation scenarios common in construction sites.

Electrical Control System Parts

Schneider contactors and Wedmuller intermediate relays ensure reliable electrical control, minimizing downtime caused by electrical component failures. The inverter, sourced from a trusted domestic brand, optimizes motor performance and energy efficiency, adjusting power output based on load weight.

Load-Bearing & Safety Components

High-strength galvanized steel wire rope with a strength grade of 2160MPa provides exceptional load-bearing capacity and resistance to fatigue. An overload limiter is included as standard, preventing excessive loads (beyond 110% of rated capacity) and protecting the winch from structural damage.

Power Supply Compatibility

The winch operates on a 380V/50Hz power supply with a 48V control voltage, ensuring compatibility with standard industrial power systems. For regions with different voltage standards (e.g., 460V/60Hz), customized power modules are available upon request.

FAQ

What industries can benefit from the NWW Series Heavy Duty Open Winch?

The NWW Series Heavy Duty Open Winch is ideal for logistics, construction, manufacturing, and marine industries that require lifting and moving large-tonnage loads. It excels in applications such as heavy machinery installation, container handling, and infrastructure projects (e.g., bridge construction).

How does the dual brake system enhance safety?

The dual brake system (electric contact disc + electromagnetic disc or electric contact disc + hydraulic) provides two independent braking mechanisms. This redundancy ensures that if one brake fails, the other immediately engages, preventing load free-fall and maintaining control, thus significantly enhancing operational safety.

Can the winch be adapted to different power supply conditions?

The NWW Series Heavy Duty Open Winch is standardized for 380V/50Hz power supply and 48V control voltage. While the transformer is not included, it can be configured with compatible transformers to adapt to specific power supply requirements (e.g., 220V single-phase or 460V three-phase), ensuring flexibility across different regions and facilities.
