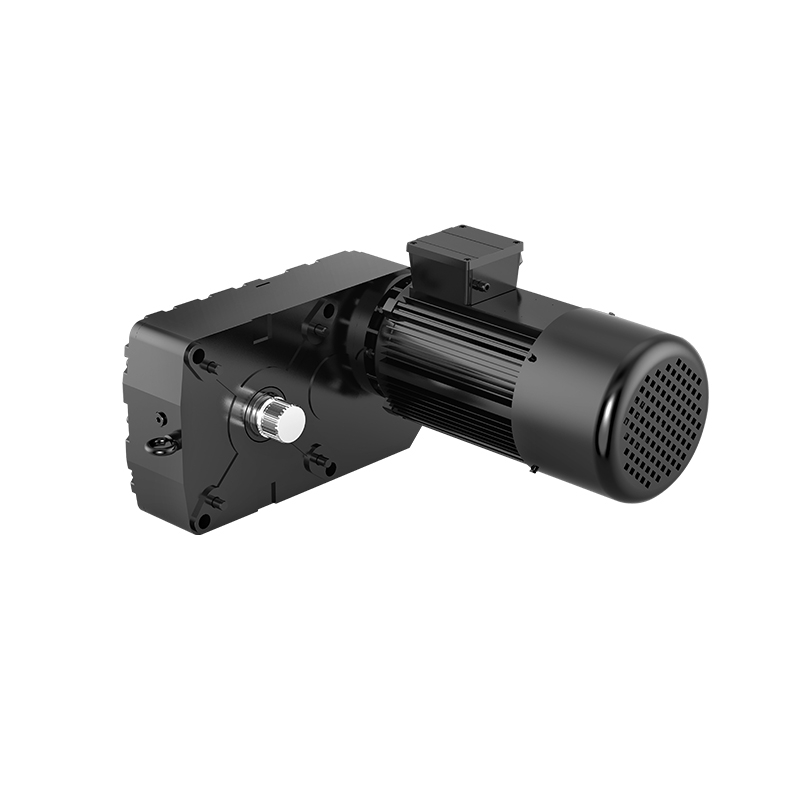

Lifting Gearbox with Motor and Brake

Product Appearance

Unified Body Structure Design

Designed with integration and functionality in mind, the IUEE Three-in-one Lifting Equipment features a compact, ergonomic profile that maximizes usability in various workspaces. The unified body structure houses all three core functions (lifting mechanism, positioning system, and moving trolley), reducing clutter and improving operational efficiency.

Exterior Durability & Environmental Resistance

The exterior is constructed with high-quality, durable materials (aluminum alloy frame for lightweight strength, steel reinforcement for load-bearing parts) that withstand heavy use and harsh industrial conditions. The finish (anti-corrosion spray coating) resists corrosion and fading, maintaining its appearance and structural integrity in humid, dusty, or chemical-exposed environments.

Operational Zone Optimization

Key operational zones, such as control panels and lifting attachments, are strategically placed for easy access and visibility. The control panel is tilted at a 15° angle to reduce operator neck strain during extended use, while the lifting attachment is positioned for clear line-of-sight, enabling precise load alignment.

Stability & Maneuverability Features

The equipment’s balanced design ensures stable operation during lifting and movement, with a low center of gravity that reduces tipping risks when handling heavy loads. Its sleek lines and professional appearance align with modern industrial aesthetics, while the compact size allows it to navigate narrow aisles in warehouses or tight spaces in manufacturing workshops.

Mechanism Design

Lifting System Engineering

The IUEE Three-in-one Lifting Equipment incorporates a sophisticated mechanism that seamlessly integrates lifting, positioning, and moving functions. A powerful yet energy-efficient motor drives the lifting system, providing smooth and consistent power for varying load requirements—from light components to heavy machinery. The lifting mechanism uses a precision chain drive to ensure uniform speed and minimal load sway.

Positioning Precision Control

The positioning mechanism offers precise control over load placement, with responsive adjustments (via a joystick controller) that cater to delicate assembly tasks (e.g., aligning holes for bolt installation) and heavy-duty transfers (e.g., moving machinery to exact floor positions). The positioning system uses optical sensors to detect load alignment, providing real-time feedback to the operator.

Moving Trolley Agility

The moving component is designed for agility, allowing the equipment to navigate tight spaces and uneven surfaces with ease. It features rubberized wheels that reduce floor damage and noise, while the dual-wheel drive system ensures smooth movement even when carrying unbalanced loads. The moving speed is adjustable, with a slow mode for precise positioning and a fast mode for long-distance transfers.

Safety Integration in Mechanism

Safety is embedded in every aspect of the mechanism, with integrated overload protection (prevents operation above rated capacity), anti-slip features (rubberized load contact points), and emergency braking systems (stops all functions immediately if the emergency button is pressed). These features ensure reliable operation even in high-pressure scenarios, such as time-sensitive production deadlines.

Wear Reduction & Longevity Design

The mechanism’s design minimizes friction (via self-lubricating bearings) and wear, extending the equipment’s service life and reducing maintenance needs. Critical components (e.g., gears, chains) are made of high-strength alloys with surface hardening treatments, ensuring resistance to abrasion and fatigue.

Standard Parts

Power & Drive Core Components

The IUEE Three-in-one Lifting Equipment is fitted with high-quality standard parts that ensure performance, durability, and safety. Core components include a robust motor, selected for its power output and energy efficiency—even during continuous operation, it maintains stable performance without overheating. The motor is paired with a high-efficiency gearbox that reduces energy loss and noise.

Lifting Attachment Options

The lifting attachment—whether a hook, clamp, or custom fixture—is manufactured from high-strength materials (alloy steel for hooks, reinforced rubber for clamps) that provide secure load retention and resistance to wear. Standard attachments include a swivel hook (360° rotation for load alignment) and a flat clamp (for handling flat, irregularly shaped loads like metal sheets).

Control Interface Components

The control system features intuitive interfaces, including ergonomic buttons (with tactile feedback) and digital displays (showing load weight, lifting height, and moving speed). The joystick controller is designed for comfortable grip during extended use, with programmable buttons that allow operators to save frequently used settings (e.g., specific lifting heights for repetitive tasks).

Safety & Compliance Parts

Safety components such as overload sensors (with audible and visual alarms), emergency stop switches (red, mushroom-shaped for easy identification), and stability controls (prevents movement if the load is unbalanced) are standard. These parts ensure compliance with global safety standards (e.g., CE, OSHA), making the equipment suitable for use in international markets.

Electrical & Connectivity Parts

All electrical and mechanical parts are sourced from trusted suppliers (e.g., ABB, Schneider), guaranteeing compatibility and reliability across the entire system. The equipment includes a standard power cable (5 meters in length) with a waterproof connector, ensuring safe operation in wet environments. Optional wireless control modules are available for remote operation in large workspaces.

FAQ

What three functions does the IUEE Three-in-one Lifting Equipment combine?

The IUEE Three-in-one Lifting Equipment integrates lifting, positioning, and moving functions. This means it can lift loads from the ground or elevated surfaces (e.g., shelves), precisely position them in the desired location (e.g., aligning with assembly fixtures), and move them across the workspace (e.g., from one production station to another)—all without the need for additional equipment, streamlining handling processes.

Is the equipment suitable for both indoor and outdoor use?

Yes, the IUEE Three-in-one Lifting Equipment is designed to withstand the rigors of both indoor and outdoor environments. Its durable exterior coating resists moisture, dust, and temperature variations (operating range: -10°C to 50°C), while the robust mechanism operates reliably in different conditions (e.g., windy outdoor yards or humid indoor warehouses). The waterproof electrical components further ensure safety in rainy or wet outdoor settings.

Can the lifting attachment be customized for specific loads?

Absolutely, the IUEE Three-in-one Lifting Equipment supports customization of lifting attachments to accommodate specific load types, shapes, and sizes. Whether handling delicate components (e.g., glass panels—with suction cup attachments), irregularly shaped objects (e.g., pipes—with curved clamps), or heavy machinery (e.g., engines—with fork attachments), custom clamps, hooks, or fixtures can be fitted to ensure secure and efficient lifting. Customization is done in collaboration with the engineering team to ensure compatibility with the equipment’s load capacity.
