Electrical Control Room

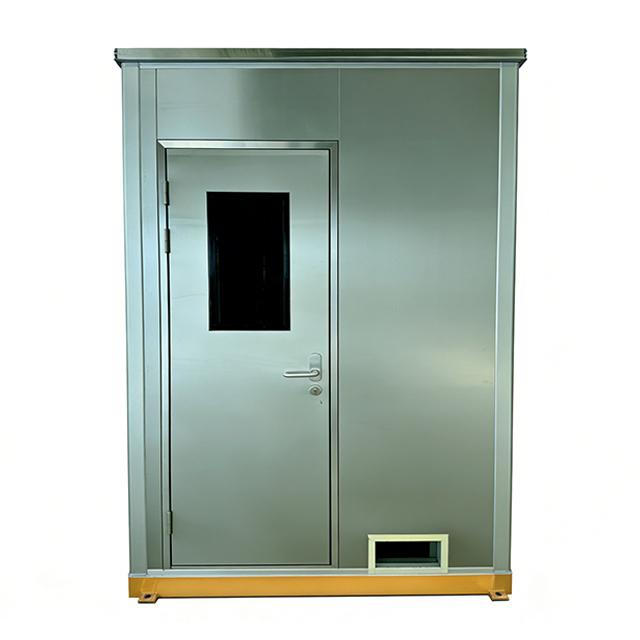

Product Appearance

Constructed from robust steel plate with a durable corrosion-resistant coating, the control room features a modern, modular design. It includes a spacious interior for maintenance access, sealed cable entry ports, and often an insulated, ergonomic operator cabin section with panoramic visibility. External access is provided through sturdy, lockable doors, and the unit is equipped with ventilation systems, lighting, and viewing windows designed for industrial environments.

Mechanism Design
The design focuses on protection, organization, and serviceability. It employs a rigid, vibration-resistant structure with internal mounting frames and standardized cable management trays for orderly routing and secure component installation. Special attention is given to thermal management through optimized ventilation or optional HVAC systems to prevent overheating. The layout is logically planned to separate high-power and low-voltage systems, minimizing interference and enhancing safety.

Standard Parts
To ensure reliability and ease of maintenance, the control room integrates high-quality industry-standard components. This typically includes modular terminal blocks, DIN-rail mounted circuit breakers and contactors, programmable logic controllers (PLCs) from major brands, and standardized human-machine interface (HMI) panels. Wiring, connectors, and electrical insulation materials all comply with international electrical standards (e.g., IEC).
